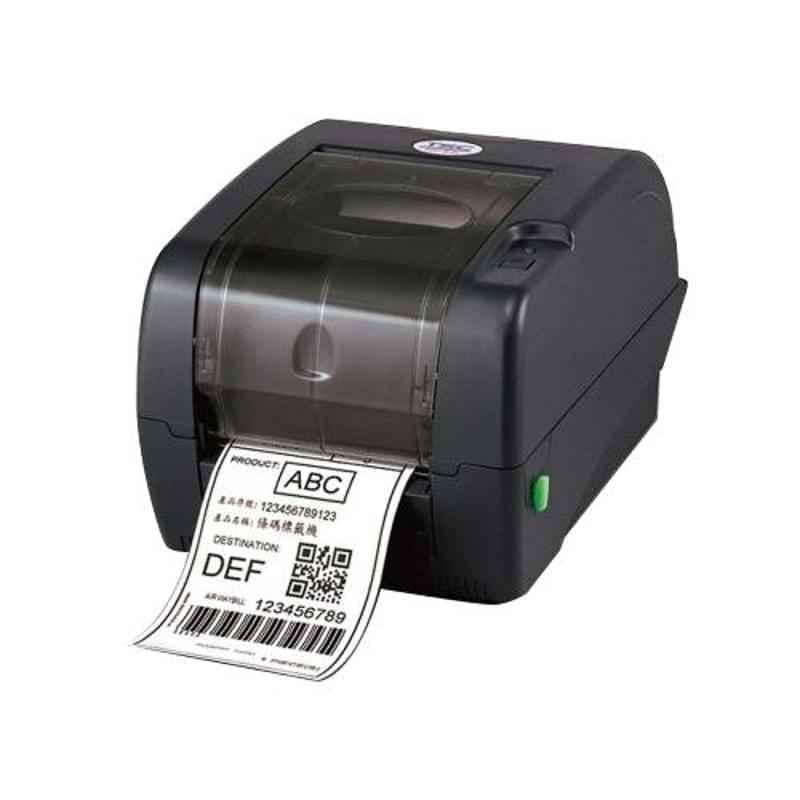

TSC TTP-345 USB Barcode Thermal Label Printer

Designed for barcode and address label printing for dispatch and inventory bins, the TSC TTP-345 USB Barcode Thermal Label Printer is TSC's label printer in this range. Key specifications include print resolution of 300 dpi, media sensors of Moveable Black Mark Reflective Sensor Head Open Sensor Ribbon End Sensor Gap Transmissive Sensor (Offset 6mm From Liner Edge), print speed of 127 mm/sec and connectivity of USB & RS-232. Supporting specifications include connectivity features RS-232 (Max. 115200 bps) USB 2.0 (Full Speed Mode), print technology Direct Thermal & Thermal Transfer, print method Thermal Transfer & Direct Thermal and input voltage 100-240 V AC. Operations leads specify it where label legibility has to survive handling, storage and scanning. It is listed at ₹28,999 on Industrial Hardwares, supplied through verified OEMs and distributors. Request a quote on the label printer to confirm stock, delivery timelines and pricing for your order quantity.

Technical Specifications

SDRAM8 MB
Weight3 kg
Barcode1D Bar Code: Code 39, Code 93, Code 128UCC, Code 128 Subset A, B, C, Codabar Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E EAN & UPC 2 (5) Digits Add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, RSS14, Code 11 2D bar code: PDF-417, Maxicode, Data Matrix, QR Code, Aztec
Warranty1 Year
EnclosureDouble Walled Plastic
Item CodeTTP-345
processor32 bit RISC CPU
Dimensions22x33x27 cm
Media TypesMedia Type: Continuous, Die-Cut, Black Mark, Fan-Fold & Notch
Print Speed127 mm/sec
ConnectivityUSB & RS-232
Flash Memory4 MB
Print MethodThermal Transfer & Direct Thermal
Input Voltage100-240 V AC
Media SensorsMoveable Black Mark Reflective Sensor Head Open Sensor Ribbon End Sensor Gap Transmissive Sensor (Offset 6mm From Liner Edge)
Ribbon Length300 m
Media DiameterOD: 5 inch 1-3 inch
Output Current3.75 Amp
Output Voltage24 V DC
Media Thickness0.06-0.19 mm
Dimensions LxWxH172x165x195 mm
Package ContentsWindows Labeling Software CD Disk Quick Start Guide USB Cable External Universal Switching Power Supply Power Cord Label Spindle, Fixing Tab x2, 1.5 inch Core Adapter x2 Ribbon Spindle x2 Ribbon Rewind Spindle Paper Core
Print Resolution300 dpi
Print TechnologyDirect Thermal & Thermal Transfer
Printer LanguageTSPL-EZ
Storage Humidity10-90% (Non-Condensing)
Expandable MemoryUpto 4 GB
Operating Humidity25-85% (Non-Condensing)
Common/Generic NameBarcode Printer
Storage Temperature-40 to 60 deg C
Customer Care Number919810822688
Connectivity FeaturesRS-232 (Max. 115200 bps) USB 2.0 (Full Speed Mode)
Operating Temperature5 to 40 deg C
