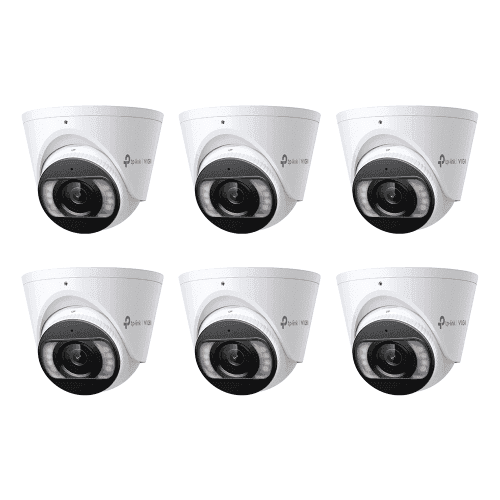

TP-Link VIGI C485 2.8mm 8MP Full Colour Turret Network IP Camera with Human, Vehicle Detection, NVR Enable, Active Defense & 2 Way Audio (Pack of 6)
TP-Link VIGI C485 2.8mm 8MP Full Colour Turret Network IP Camera with Human, Vehicle Detection, NVR Enable, Active Defense & 2 Way Audio (Pack of 6)

TP-Link VIGI C485 2.8mm 8MP Full

TP-Link
OEM Verified

Product Description

TP-Link VIGI C485 2.8mm 8MP Full Colour Turret Network IP Camera with Human, Vehicle Detection, NVR Enable, Active Defense & 2 Way Audio (Pack of 6)

The TP-Link VIGI C485 is a top-of-the-line 8MP Full Colour Turret Network IP Camera that offers exceptional surveillance capabilities. With advanced features such as Human \u0026 Vehicle Detection, NVR Enable, Active Defense, and 2 Way Audio, this product ensures unparalleled security for any setting. It is equipped with a fixed focal lens and a lens size of 2.8mm, providing a wide viewing angle for comprehensive coverage. The camera also prioritizes security with features like Security Password Protection, HTTPS Encryption, IP Address Filter, and Digest Authentication. The M12xP 0.5 lens mount ensures easy installation and flexibility. Additionally, the camera's IR Range of 30m allows for clear night vision. Supporting various protocols including TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, and UPnP UDP, this camera ensures seamless networking and connectivity. It can be powered through a 12 V DC +/- 5% power supply or PoE (802.3 af/at, class 0), providing flexibility in installation options. With its exceptional features and reliable performance, TP-Link VIGI C485 is the preferred choice for network IP cameras.

Technical Specifications

LensFixed Focal Lens
ModelVIGI C485
NotesImages are for Reference Purpose only, Actual Product May Vary
Camera8 MP
FilterIR Cut Filter
Weight0.525 kg
Pack of6
ApertureF1.6
IR Range30 m
MaterialMetal
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP & SSL/TLS
SecurityPassword Protection, HTTPS Encryption, IP Address Filter & Digest Authentication
Warranty3 Years
Lens Size2.8 mm
Frame rateMain Stream: At 50Hz : 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, At 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Sub-Stream: At 50Hz : 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, At 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Lens MountM12xP0.5
ResolutionMain Stream: 3840x2160p, 2560x1440p, 2304x1296p, 2048x1280p, 1920x1080p,1280x720p Sub-Stream: 704x576p, 640x480p, 352x288p, 320x240p
View AngleHorizontal FOV: 111.4 deg, Vertical FOV: 58.8 deg & Diagonal FOV: 134 deg
Wavelength850 Nm
Audio InputYes
Audio OutputYes
Image Sensor1/2.7 inch Progressive Scan CMOS
Power Supply12 V DC +/- 5% & 5.5 mm Coaxial Power Plug & PoE (802.3 af/at, Class 0)
CertificationCE, NTRA, VCCI, KC, BSMI, FCC & IC
Dynamic Range120 dB
Shutter Speed1/3 to 1/10000 sec
Audio Bit rate64 Kbps (G.711 Alaw)
Number of LEDsIR: 4 White: 4
Packer DetailsShenzhen, No. 5, Keyuan Road, Central District, Nanshan Science and Technology Park, China
Video Bit RateMain Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps
Angle AdjustmentRange: Pan: 0 to 360 deg, Tilt: 0 to 85 deg, Rotation: 0 to 360 deg
Dimensions LxWxH7.4x18.4x7.4 cm
Importer DetailsTP-Link India Pvt Ltd, 207-A, Modi Tower, 98 Nehru Place, New Delhi-110019
Package ContentsVIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments & Mounting Accessories (Screws, Drywall Anchors & Hex Key)
Country of originChina
Image EnhancementBLC/3D DNR/Prevent Overexposure to Infrared Light
Network interface1 RJ45 10/100 M Self-Adaptive Ethernet Port
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
Ingress ProtectionIP 67
Maximum Resolution3840x2160p
Common/Generic NameNetwork IP Camera
Manufacturer DetailsShenzhen, No. 5, Keyuan Road, Central District, Nanshan Science and Technology Park, China
Minimum Illumination0.005 Lux, 0 Lux with IR/White Light
Memory Card Slot TypeMicroSD Card
Operating Temperature-30 to 60 deg C
Expandable Storage Capacityup to 256 GB
