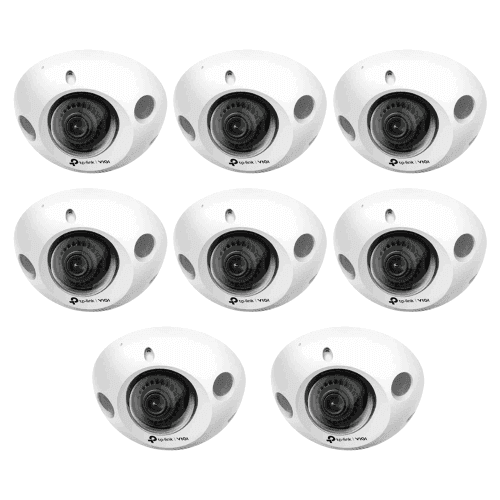

TP-Link VIGI C230I Mini 3MP 2.8mm Dome Network IP Camera with Human, Vehicle Classification, NVR Enable, Smart Detection & Corridor Mode (Pack of 8)
TP-Link VIGI C230I Mini 3MP 2.8mm Dome Network IP Camera with Human, Vehicle Classification, NVR Enable, Smart Detection & Corridor Mode (Pack of 8)

TP-Link VIGI C230I Mini 3MP 2.8mm

TP-Link
OEM Verified

Product Description

TP-Link VIGI C230I Mini 3MP 2.8mm Dome Network IP Camera with Human, Vehicle Classification, NVR Enable, Smart Detection & Corridor Mode (Pack of 8)

Rated at resolution 704x576p, 640x480p, 352x288p & 320x240p and a list price of ₹25,599, this TP-Link surveillance camera — the TP-Link VIGI C230I Mini 3MP 2.8mm Dome Network IP Camera with Human, Vehicle Classification, NVR Enable, Smart Detection & Corridor Mode (Pack of 8) — is built for multi-site security estates that are reviewed from a single control room. Core specifications cover resolution of 704x576p, 640x480p, 352x288p & 320x240p, maximum resolution of 2304x1296p, image sensor of 1/3 inch Progressive Scan CMOS and ir range of 30 m. The datasheet also lists network interface 1xRJ45 10/100M Self-Adaptive Ethernet Port, protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP & SSL/TLS, power consumption 7.5 W and operating temperature -30 to 60 deg C. Security integrators specify it where coverage, night performance and recording retention are audited. It is listed at ₹25,599 on Industrial Hardwares, supplied through verified OEMs and distributors. Compare the surveillance camera against similar models on this site, then request a quote for volume pricing and lead time.

Technical Specifications

SizePower Plug: 5.5 mm
ModelVIGI C230I Mini
NotesImages are for Reference Purpose only, Actual Product May Vary
Weight0.525 kg
Pack of8
StorageBuilt-In Memory Card Slot, Support MicroSD Card & Up to 256 GB
ApertureF1.6
IR Range30 m
MaterialPlastic
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP & SSL/TLS
SecurityPassword Protection, HTTPS Encryption, IP Address Filter & Digest Authentication
Warranty3 Years
Lens Size2.8 mm
Frame rate1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps & 30 fps
Lens MountM12
Mega Pixel3 MP
Resolution704x576p, 640x480p, 352x288p & 320x240p
View AngleHorizontal FOV: 106.9 deg, Vertical FOV: 56.9 deg & Diagonal FOV: 127.9 deg
Audio InputBuilt-in Microphone
Switch TypeDay, Night, Auto & Schedule
Audio OutputBuilt-in Speaker
Image Sensor1/3 inch Progressive Scan CMOS
Power Supply12 V DC
CertificationCE, VCCI, BSMI, KC & ONVIF
Packer DetailsShenzhen, No. 5, Keyuan Road, Central District, Nanshan Science and Technology Park, China
Video Bit Rate64 Kbps to 4 Mbps
Video Streaming3 Main Streams & 3 Sub-Streams
Dimensions LxWxH7.4x18.4x7.4 cm
Importer DetailsTP-Link India Pvt Ltd, 207-A, Modi Tower, 98 Nehru Place, New Delhi-110019
Package ContentsVIGI Network Camera, Quick Start Guide, Mounting Accessories & Mounting Template
Country of originChina
Image EnhancementBLC/3D DNR/HLC & SmartIR
Network interface1xRJ45 10/100M Self-Adaptive Ethernet Port
Power Consumption7.5 W
Video CompressionSub-Stream: H.265 & H.264 Main Stream: H.265+/H.265/H.264+ & H.264
Maximum Resolution2304x1296p
Common/Generic NameNetwork IP Camera
Manufacturer DetailsShenzhen, No. 5, Keyuan Road, Central District, Nanshan Science and Technology Park, China
Minimum IlluminationColour: 0.1 Lux & 0 Lux with IR
Operating Temperature-30 to 60 deg C
Noise Reduction Rating3D DNR
