TP-Link VIGI C230I 3MP Indoor Network IP Combo Kit with 8 Channel NVR, 8 Cameras, 10 Port POE Switch, D-LINK 100M LAN Cable & Connectors
TP-Link VIGI C230I 3MP Indoor Network IP Combo Kit with 8 Channel NVR, 8 Cameras, 10 Port POE Switch, D-LINK 100M LAN Cable & Connectors

TP-Link VIGI C230I 3MP Indoor Netwo

TP-Link
OEM Verified

Product Description

TP-Link VIGI C230I 3MP Indoor Network IP Combo Kit with 8 Channel NVR, 8 Cameras, 10 Port POE Switch, D-LINK 100M LAN Cable & Connectors

Introducing the TP-Link VIGI C230I 3MP Indoor Network IP Combo Kit, the ultimate solution for all your networking needs. This comprehensive kit includes everything you need to set up a high-quality surveillance system.<br> <br>With the included 8 channel NVR, you can easily record and monitor the feeds from the 8 cameras included in the kit. The 3MP cameras capture clear and crisp footage, ensuring that you never miss a single detail. The IR range of 30m allows for reliable night vision, providing round-the-clock monitoring capabilities.<br> <br>The 10 port POE switch ensures seamless and reliable connectivity, allowing you to easily connect and power all your devices. With a cable length of 100m, you have the flexibility to set up your network as per your requirement. The D-LINK 100M LAN cable and connectors ensure secure and stable connections.<br> <br>Designed by the renowned brand TP-Link, you can trust the quality and reliability of this network IP combo kit. With a conductor diameter of 0.51mm, it guarantees high-speed data transmission up to a max speed of 10 Gbps.<br> <br>Please note that the images provided are for reference purposes only. Upgrade your surveillance system with this TP-Link VIGI C230I 3MP Indoor Network IP Combo Kit and experience the power of superior networking technology.

Technical Specifications

ModelCamera: VIGI C230I NVR: VIGI NVR1008H Desktop Switch: TL-SG1210P
NotesImages are for Reference Purpose Only
Weight14 kg
IR Range30 m
BandwidthIncoming: 80 Mbps Outgoing: 60 Mbps
Mega Pixel3 MP
Cable Length100 m
Image Sensor1/2.8 inch Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 sec
Packer DetailsFloor 6, Nanduan, Building 24, Industrial Factory, Shennanlu Kejiyuan, Nanshan District Shenzhen, Guangdong, 518052, China
Video Bit RateSub-Stream: 64 Kbps to 512 Kbps Main Stream: 256 Kbps to 4 Mbps
Number of Pairs4 Pair
Number of Ports10
Dimensions LxWxH40x40x40 cm
Heat Dissipation23.87 BTU/h (No PD Connected) 263.39 BTU/h (With 63 W PD Connected)
Importer DetailsTP-Link India Pvt Ltd, 207-A , Modi Tower, 98 Nehru Place, New Delhi-110019

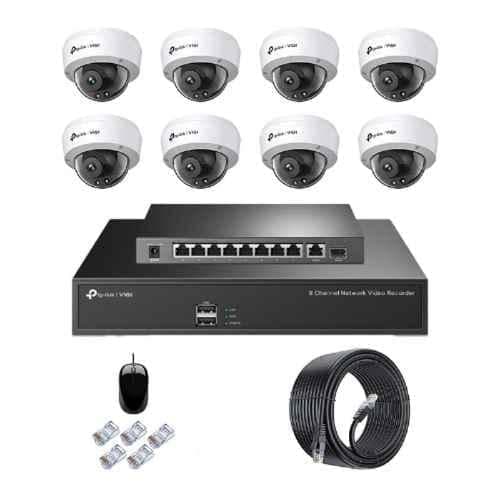

Package ContentsTP-Link VIGI C230I 8 Units, 1 Unit 8 Channel NVR1008H Including Mouse, 1 Unit 10 Port POE Switch TL-SG1210P, 100 Meters D-LINK LAN Cable & Required Conectors
Storage CapacityNo HDD
Video Resolution2304x1296p
Country of originChina
Video CompressionSub-Stream: H.265 & H.264 Main Stream: H.265+/H.265/H.264+ & H.264
Conductor Diameter0.51 mm
Number of Channels8
Common/Generic NameNetwork IP Combo Kit
Manufacturer DetailsFloor 6, Nanduan, Building 24, Industrial Factory, Shennanlu Kejiyuan, Nanshan District Shenzhen, Guangdong, 518052, China
Minimum IlluminationColor: 0.1 Lux & 0 Lux with IR
Max Transmission Speed10 Gbps
Hard Disc(SATA)/Hard Disc(Capacity)1 SATA/Up to 10 TB

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹35,298

Contact OEM for bulk pricing & discounts

View OEM Profile
