TP-Link VIGI C230I 3MP Indoor Network IP Combo Kit with 4 Channel NVR, 4 Cameras, 5 Port POE Switch, 1TB HDD & D-LINK 100M LAN Cable & Connectors
TP-Link VIGI C230I 3MP Indoor Network IP Combo Kit with 4 Channel NVR, 4 Cameras, 5 Port POE Switch, 1TB HDD & D-LINK 100M LAN Cable & Connectors

TP-Link VIGI C230I 3MP Indoor Netwo

TP-Link
OEM Verified

Product Description

TP-Link VIGI C230I 3MP Indoor Network IP Combo Kit with 4 Channel NVR, 4 Cameras, 5 Port POE Switch, 1TB HDD & D-LINK 100M LAN Cable & Connectors

Video resolution 2304x1296p and a list price of ₹25,197: the TP-Link VIGI C230I 3MP Indoor Network IP Combo Kit with 4 Channel NVR, 4 Cameras, 5 Port POE Switch, 1TB HDD & D-LINK 100M LAN Cable & Connectors is TP-Link's surveillance camera for perimeter and entrance monitoring across warehouses, plants and retail floors. Core specifications cover video resolution of 2304x1296p, image sensor of 1/2.8 inch Progressive Scan CMOS, shutter speed of 1/3 to 1/10000 sec and max transmission speed of 10 Gbps. Supporting specifications include ir range 30 m, storage capacity 1 TB, number of ports 5 and number of channels 4. Facility teams deploy it where camera uptime and footage quality are part of the compliance record. It is listed at ₹25,197 on Industrial Hardwares, supplied through verified OEMs and distributors. Request a quote on the surveillance camera to confirm stock, delivery timelines and pricing for your order quantity.

Technical Specifications

ModelCamera: VIGI C230I NVR: VIGI NVR1004H Desktop Switch: TL-SG1005P
NotesImages are for Reference Purpose Only
Weight10 kg
IR Range30 m
BandwidthIncoming: 80 Mbps Outgoing: 60 Mbps
Mega Pixel3 MP
Cable Length100 m
Image Sensor1/2.8 inch Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 sec
Packer DetailsFloor 6, Nanduan, Building 24, Industrial Factory, Shennanlu Kejiyuan, Nanshan District Shenzhen, Guangdong, 518052, China
Video Bit RateSub-Stream: 64 Kbps to 512 Kbps Main Stream: 256 Kbps to 4 Mbps
Number of Pairs4 Pair
Number of Ports5
Dimensions LxWxH40x40x40 cm
Heat Dissipation13.5 BTU/h (No PD Load) 219.9 BTU/h (With 56 W PD Load)
Importer DetailsTP-Link India Pvt Ltd, 207-A , Modi Tower, 98 Nehru Place, New Delhi-110019

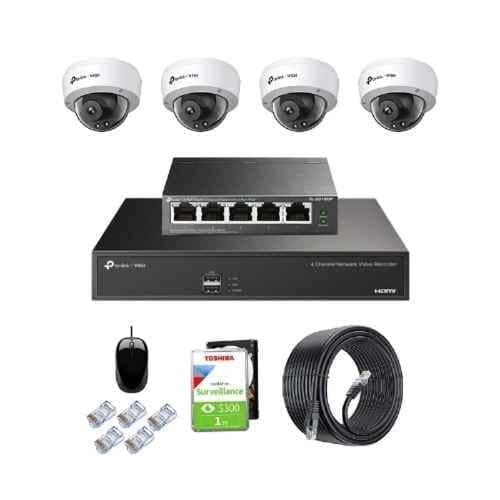

Package ContentsTP-Link VIGI C230I 4 Units, 1 Unit 4 Channel NVR1004H Including Mouse, 1 Unit 5 Port POE Switch TL-SG1005P, 1 TB Hard DISK, 100 Meters D-LINK LAN Cable & Required Conectors
Storage Capacity1 TB
Video Resolution2304x1296p
Country of originChina
Video CompressionSub-Stream: H.265 & H.264 Main Stream: H.265+/H.265/H.264+ & H.264
Conductor Diameter0.51 mm
Number of Channels4
Common/Generic NameNetwork IP Combo Kit
Manufacturer DetailsFloor 6, Nanduan, Building 24, Industrial Factory, Shennanlu Kejiyuan, Nanshan District Shenzhen, Guangdong, 518052, China
Minimum IlluminationColor: 0.1 Lux & 0 Lux with IR
Max Transmission Speed10 Gbps
Hard Disc(SATA)/Hard Disc(Capacity)1 SATA/Up to 10 TB

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹25,197

Contact OEM for bulk pricing & discounts
