TP-Link VIGI C230 & C330 3MP Full Color Indoor & Outdoor Network IP Combo Kit with 4CH NVR 2 Camera 5 Port POE Switch 2TB HDD D-LINK 100M LAN Cable
TP-Link VIGI C230 & C330 3MP Full Color Indoor & Outdoor Network IP Combo Kit with 4CH NVR 2 Camera 5 Port POE Switch 2TB HDD D-LINK 100M LAN Cable

TP-Link VIGI C230 & C330 3MP Full

TP-Link
OEM Verified

Product Description

TP-Link VIGI C230 & C330 3MP Full Color Indoor & Outdoor Network IP Combo Kit with 4CH NVR 2 Camera 5 Port POE Switch 2TB HDD D-LINK 100M LAN Cable

Introducing the TP-Link VIGI C230 & C330 3MP Full Color Indoor & Outdoor Network IP Combo Kit. This incredible kit includes a 4CH NVR, 2 cameras, a 5 port POE switch, a 2TB HDD, and a D-LINK 100M LAN Cable. Designed to provide you with top-notch surveillance capabilities, this combo kit is perfect for both indoor and outdoor use.<br> <br>With a mega pixel of 3 MP, these cameras deliver crystal clear images and videos, ensuring that every detail is captured. The cable length of 100m allows for flexible installation options, while the 5 ports enable you to connect multiple devices effortlessly. The 0.51mm conductor diameter ensures optimal data transmission performance.<br> <br>Equipped with an impressive IR range of 30m, these cameras can capture clear footage even in complete darkness. Please note that the images shown are for reference purposes only. Rest assured, the actual products are guaranteed to meet and exceed your expectations.<br> <br>With a max transmission speed of 10 Gbps, you can rely on speedy and reliable data transfer. Take control of your surveillance system with ease and store all your footage with the included 2TB HDD.<br> <br>Choose TP-Link, a reputable brand known for its innovative and high-quality networking products. Don't settle for anything less when it comes to your security needs. Upgrade to the TP-Link VIGI C230 & C330 3MP Full Color Indoor & Outdoor Network IP Combo Kit and experience superior performance and peace of mind.

Technical Specifications

ModelNVR: VIGI NVR1004H Indoor Camera: VIGI C230 Outdoor Camera: VIGI C330 Desktop Switch: TL-SG1005P
NotesImages are for Reference Purpose Only
Weight8 kg
IR Range30 m
BandwidthIncoming: 80 Mbps Outgoing: 60 Mbps
Mega Pixel3 MP
Cable Length100 m
Image Sensor1/2.8 inch Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 sec
Packer DetailsFloor 6, Nanduan, Building 24, Industrial Factory, Shennanlu Kejiyuan, Nanshan District Shenzhen, Guangdong, 518052, China
Video Bit RateSub-Stream: 64 Kbps to 512 Kbps Main Stream: 256 Kbps to 4 Mbps
Number of Pairs4 Pair
Number of Ports5
Dimensions LxWxH40x40x40 cm
Heat Dissipation13.5 BTU/h (No PD Load) 219.9 BTU/h (With 56 W PD Load)
Importer DetailsTP-Link India Pvt Ltd, 207-A , Modi Tower, 98 Nehru Place, New Delhi-110019

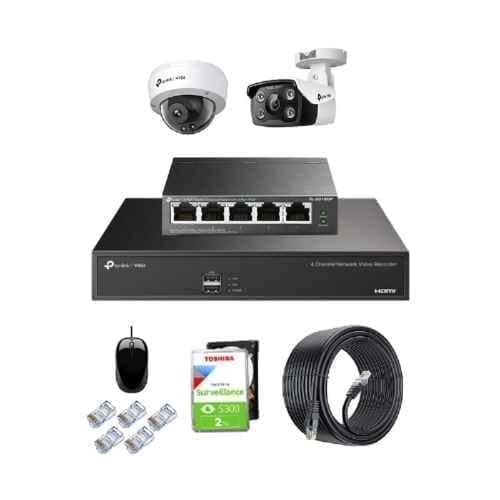

Package ContentsTP-Link VIGI C230 & VIGI C330 1 Unit Each, 1 Unit 4 Channel NVR1004H Including Mouse, 1 Unit 5 Port POE Switch TL-SG1005P, 2 TB Hard DISK, 100 Meters D-LINK LAN Cable & Required Conectors
Storage Capacity2 TB
Video Resolution2304x1296p
Country of originChina
Video CompressionSub-Stream: H.265 & H.264 Main Stream: H.265+/H.265/H.264+ & H.264
Conductor Diameter0.51 mm
Number of Channels4
Common/Generic NameNetwork IP Combo Kit
Manufacturer DetailsFloor 6, Nanduan, Building 24, Industrial Factory, Shennanlu Kejiyuan, Nanshan District Shenzhen, Guangdong, 518052, China
Minimum IlluminationColor: 0.005 Lux & 0 Lux with IR/White Light
Max Transmission Speed10 Gbps
Hard Disc(SATA)/Hard Disc(Capacity)1 SATA/Up to 10 TB
