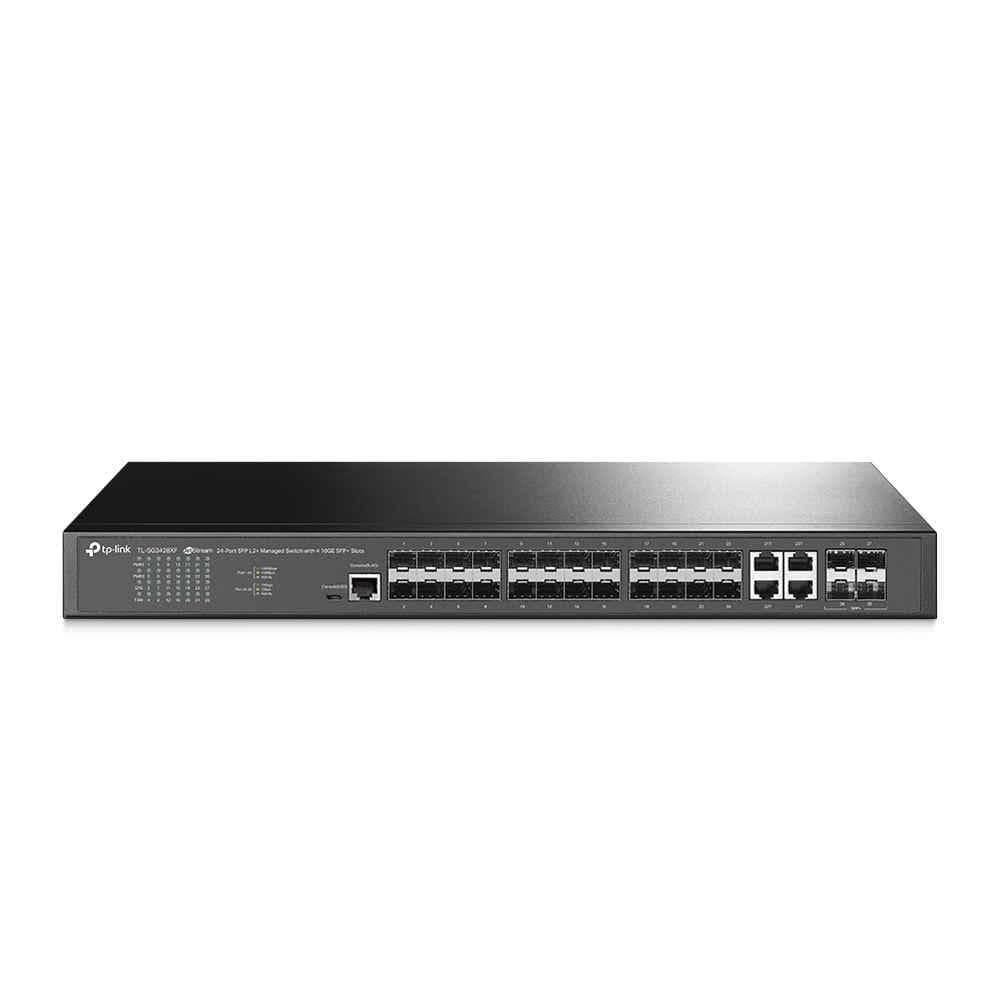

TP-Link JetStream 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots, TL-SG3428XF
TP-Link JetStream 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots, TL-SG3428XF

TP-Link JetStream 24-Port SFP L2+

TP-Link
OEM Verified

Product Description

TP-Link JetStream 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots, TL-SG3428XF

Rated at a list price of ₹39,199, this TP-Link industrial switch — the TP-Link JetStream 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots, TL-SG3428XF — is built for shop-floor and control-cabinet networking in plants and substations. Core specifications cover interface of 20x Gigabit SFP, 4x Gigabit SFP/RJ45 Combo, 4x 10G SFP+ Slots, 1x RJ45 Console & 1x Micro-USB Console, power consumption of 35.7 W, voltage of 100-240 V and operating temperature of 0-40 deg C. The datasheet also lists certification CE, FCC & RoHS, storage temperature -40 to 70 deg C, number of ports 24 and dimensions lxwxh 440x220x44 mm. Controls engineers specify it on port count, PoE budget, DIN-rail mounting and operating temperature range. It is listed at ₹39,199 on Industrial Hardwares, supplied through verified OEMs and distributors. Compare the industrial switch against similar models on this site, then request a quote for volume pricing and lead time.

Technical Specifications

ModelTL-SG3428XF
SeriesJetStream
Weight2 kg
Voltage100-240 V
HumidityOperating: 10-90% Non-Condensing Storage: 5-90% Non-Condensing
Warranty3 Years
Interface20x Gigabit SFP, 4x Gigabit SFP/RJ45 Combo, 4x 10G SFP+ Slots, 1x RJ45 Console & 1x Micro-USB Console
Buffer Size12 Mbit
CertificationCE, FCC & RoHS
Mounting typeRack Mount
Packer DetailsTP-LINK India Private Limited, Green Industrial Park, Dongri Pada, Poman, Kaman-Bhiwandi Road, Vasai East, Palghar, Maharashtra 401208
Number of Ports24
Dimensions LxWxH440x220x44 mm
Heat Dissipation121.81 BTU/hr
Importer DetailsTP-Link Corporation, South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, P.R. China
Package Contents1 Pc Network Switch, 1 Pc Power Cord with Quick Installation Guide, Rackmount Kit & Rubber Feet
Country of originChina
Power Consumption35.7 W
Additional DetailsPacket Forwarding Rate: 95.23 Mpps MAC Address Table: 16 K
Switching Capacity128 Gbps
Common/Generic NameNetwork Switch
Storage Temperature-40 to 70 deg C
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare & UNIX or Linux
Manufacturer DetailsTP-Link, TP-Link Corporation, South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, P.R. China
Operating Temperature0-40 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹39,199

Contact OEM for bulk pricing & discounts

View OEM Profile
