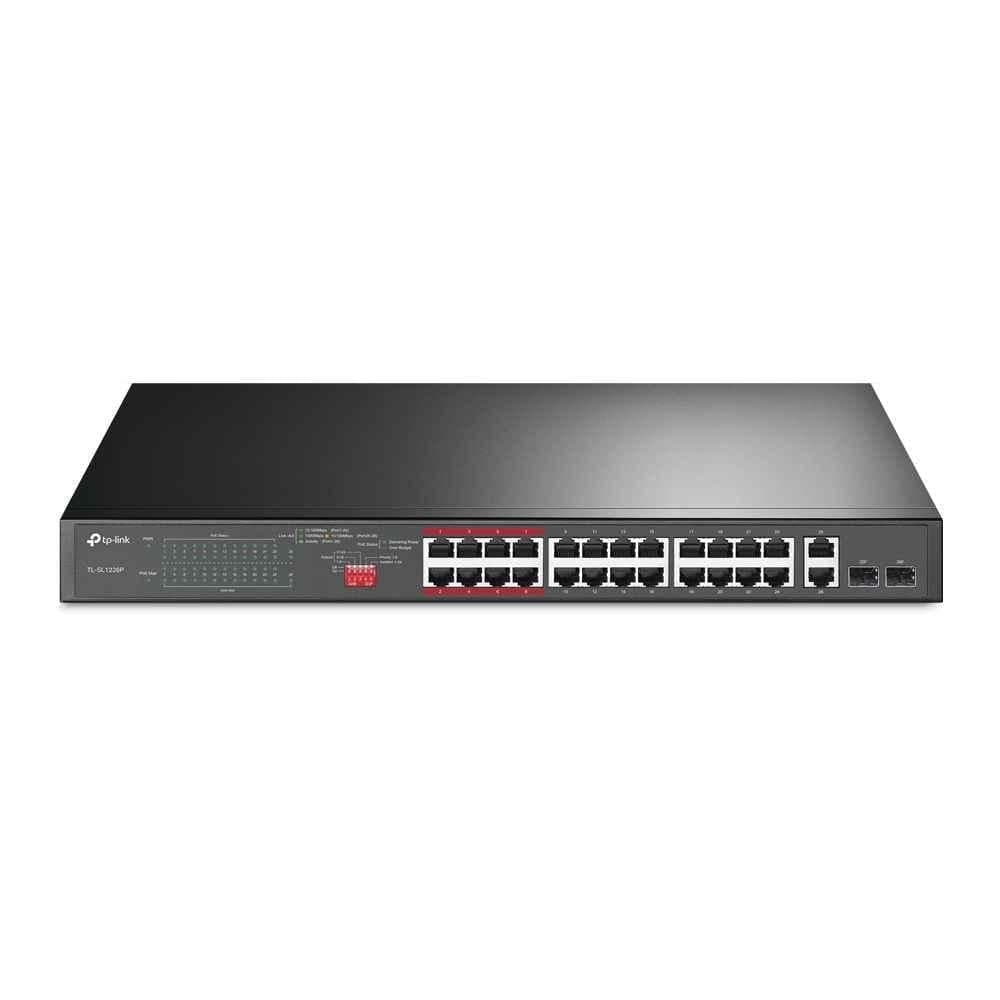

TP-Link 24 Port 10/100Mbps & 2 Port Gigabit Unmanaged PoE Switch, TL-SL1226P
TP-Link 24 Port 10/100Mbps & 2 Port Gigabit Unmanaged PoE Switch, TL-SL1226P

TP-Link 24 Port 10/100Mbps & 2

TP-Link
OEM Verified

Product Description

TP-Link 24 Port 10/100Mbps & 2 Port Gigabit Unmanaged PoE Switch, TL-SL1226P

Specified at frequency 50-60 Hz and a list price of ₹13,489, the TP-Link 24 Port 10/100Mbps & 2 Port Gigabit Unmanaged PoE Switch, TL-SL1226P is a TP-Link industrial switch for linking PLCs, cameras and controllers on a hardened network segment. The unit is specified with frequency of 50-60 Hz, power consumption of 18.32 W (without PD Connected) 294 W (with 250 W PD Connected), voltage of 100-240 V AC and operating temperature of 0-50 deg C. It is further specified with certification FCC, CE & RoHS, storage temperature 40-70 deg C, number of ports 24 and dimensions lxwxh 44x18x5 cm. Controls engineers specify it on port count, PoE budget, DIN-rail mounting and operating temperature range. It is listed at ₹13,489 on Industrial Hardwares, supplied through verified OEMs and distributors. Bulk and project pricing for the industrial switch is quoted on request, along with current availability.

Technical Specifications

PowerBudget: 250 W
Weight3 kg
Voltage100-240 V AC
Humidity5-90% RH Operating Humidity: 10-90% RH
Frequency50-60 Hz
Item CodeTL-SL1226P
CertificationFCC, CE & RoHS
Network MediaEIA/TIA-568 100 ohm STP (Max 100 m) & 10BASE-T: UTP Category 3, 4, 5 Cable (Max 100 m),EIA/TIA-568 100 ohm STP (Max 100 m) & 100BASE-TX: UTP Category 5, 5E Cable (Max 100 m)
Packer DetailsTP-Link Technologies Co. Ltd, South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, P.R. China
Number of Ports24
Dimensions LxWxH44x18x5 cm
Heat Dissipation62.47 BTU/h (without PD Connected) 1002.54 BTU/h (with 250 W PD Connected)
Importer DetailsTP-Link India Private Limited, Green Industrial Park, Dongri Pada, Poman, Kaman-Bhiwandi Road, Vasai East, Palghar, Maharashtra - 401208
Country of originChina
Power Consumption18.32 W (without PD Connected) 294 W (with 250 W PD Connected)
Additional DetailsJumbo Frame: 10 KB Mac Address Table: 8 K Packet Forwarding Rate: 6.5472 Mpps Number Of Fans: 2
Switching Capacity8.8 Gbps
Common/Generic NamePoE Switch
Storage Temperature40-70 deg C
Customer Care Number1800 209 4168
Manufacturer DetailsTP-Link Technologies Co. Ltd, South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, P.R. China
Operating Temperature0-50 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹13,489

Contact OEM for bulk pricing & discounts
