PortsPOE: Standard: 802.3 at Compliant POE Ports: Port 1- Port 8 & POE Power Budget: 110 W
PowerMax. 14.72 W & 131.42 W
Weight174 g
NetworkMedia: 10 BASE-T: UTP Category 3, 4, 5 Cable EIA/TIA-568 100 Ohms STP 100 BASE-TX: UTP Category 5, 5e Cable EIA/TIA-568 100 Ohms STP 1000 BASE-T: UTP Category 5, 5e, 6 or above Cable EIA/TIA-568 100 Ohms STP
Humidity10-90% Non-Condensing
Warranty3 Years
Interface16 10, 100, 1000 Mbps RJ45 Ports Auto Negotiation, Auto MDI, MDIX

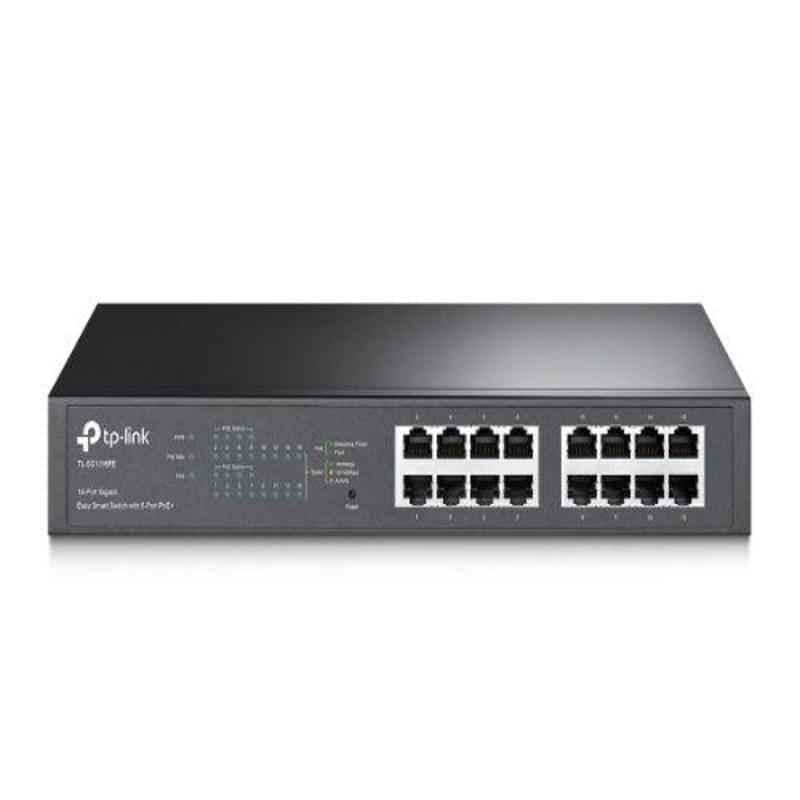

Item CodeTL-SG1016PE
Dimensions11.6x7.1x1.7 inch
CertificationCE, FCC & RoHS
Mounting typeRack Mountable
Compatible ForUp to 32 VLANs simultaneously & MTU/Port/Tag VLAN
Packer DetailsTP-LINK India Private Limited, Green Industrial Park, Dongri Pada, Poman, Kaman-Bhiwandi Road, Vasai East, Palghar, Maharashtra 401208
Number of Ports16
Dimensions LxWxH11.6x7.1x1.7 inch
Heat Dissipation50.22 BTU/h & 448.41 BTU/h
Importer DetailsTP-Link Corporation, South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, P.R. China
Package ContentsTL-SG1016PE, Power Cord, Installation Guide, Resource CD, Rackmount Kit & Rubber Feet
Storage CapacityPacket Buffer: 4.1 Mbit
Country of originChina
Network protocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q & IEEE 802.1p
Additional DetailsJumbo Frame: 9 KB Packet Forwarding Rate: 23.8 Mbps Web-based GUI & Easy Smart Configuration Utility
Data Transfer RateStore & Forward
Switching Capacity32 Gbps
Common/Generic NameSwitch
Storage Temperature-40 to 70 deg C
System RequirementsWindows: for running Utility
Customer Care Number1800 209 4168 & Email Id: support.in@tp-link.com
Manufacturer DetailsTP-Link, TP-Link Corporation, South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, P.R. China
Operating Temperature0 to 40 deg C
