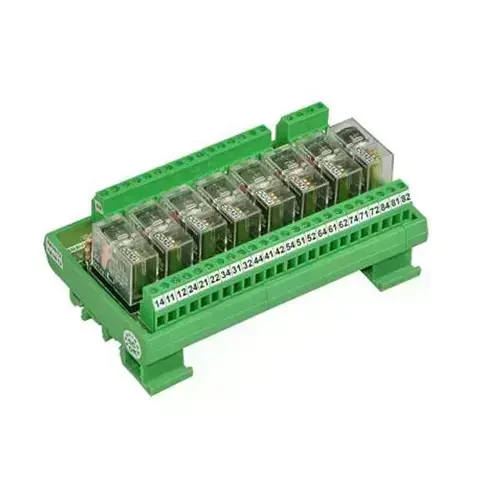

Shavison Relay Module 8 Channel 1 C/O, AS254-24V-12V-OE
Shavison Relay Module 8 Channel 1 C/O, AS254-24V-12V-OE

Shavison Relay Module 8 Channel 1

Shavison
OEM Verified
Relay Module

Product Description

Shavison Relay Module 8 Channel 1 C/O, AS254-24V-12V-OE

Shavison offers the Shavison Relay Module 8 Channel 1 C/O, AS254-24V-12V-OE as a keyboard intended for shared terminals in offices, stores and shop-floor kiosks. Published specifications list frequency of 50/60 Hz, maximum operating frequency of Mechanical : 18,000 operations/hr Electrical : 1,800 operations/hr, input voltage (ac/dc) of 24 V and coil voltage of 12 V DC. It is further specified with contact 1 C/O, features LED & Free wheeling diode across coil. Low current control input., model no AS254-24V-12V-OE and relay type OEN 58. IT teams buy it in volume where consistent layout and plug-and-play setup keep rollouts simple. It is listed at ₹2,477 on Industrial Hardwares, supplied through verified OEMs and distributors. Bulk and project pricing for the keyboard is quoted on request, along with current availability.

Technical Specifications

Contact1 C/O
FeaturesLED & Free wheeling diode across coil. Low current control input.
Model NoAS254-24V-12V-OE
Frequency50/60 Hz
Relay TypeOEN 58
ApplicationIndustrial Control System
Coil Voltage12 V DC
Release Time20 ms max.
Input Current5 mA
Is ConsumableN
Mounting Type35 mm DIN rail
Operating Time15 ms max.
No. of Channels8
Type of ProductRelay Module
Coil TerminationScrew type, for 2.5 mm sq. wire
Country of OriginIndia
Contact TerminationScrew type, for 2.5 mm sq. wire
Input Voltage (AC/DC)24 V
Maximum Operating FrequencyMechanical : 18,000 operations/hr Electrical : 1,800 operations/hr
Name of Manufacturer/Packer/ImporterM/s Anand Syndicats
