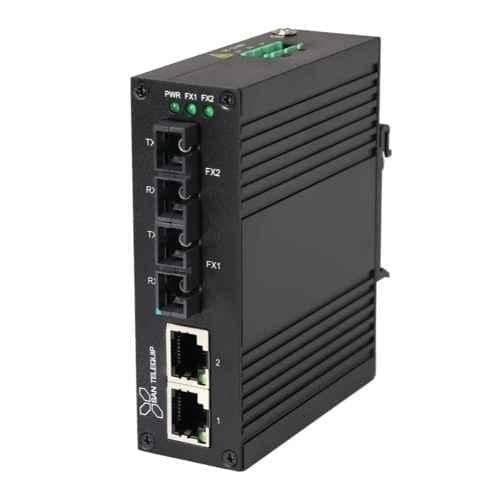

San Telequip 4 Port Multi Mode Compact Unmanaged Industrial Ethernet Switch, IES 102-2F MM SC-DC
San Telequip 4 Port Multi Mode Compact Unmanaged Industrial Ethernet Switch, IES 102-2F MM SC-DC

San Telequip 4 Port Multi Mode

San Telequip
OEM Verified

Product Description

San Telequip 4 Port Multi Mode Compact Unmanaged Industrial Ethernet Switch, IES 102-2F MM SC-DC

Rated at standards IEEE802.3 & IEEE802.3u and a list price of ₹9,990, this San Telequip industrial switch — the San Telequip 4 Port Multi Mode Compact Unmanaged Industrial Ethernet Switch, IES 102-2F MM SC-DC — is built for linking PLCs, cameras and controllers on a hardened network segment. Core specifications cover standards of IEEE802.3 & IEEE802.3u, power consumption of <4 W, voltage of 12 to 48 V DC and protection class of IP40. The datasheet also lists operating temperature -40 to 85 deg C, storage temperature -40 to 85 deg C, ports 2 of 10/100 Base-T(X) RJ45 Port & 2 of 100Base-FX Optic and number of ports 4. Controls engineers specify it on port count, PoE budget, DIN-rail mounting and operating temperature range. It is listed at ₹9,990 on Industrial Hardwares, supplied through verified OEMs and distributors. Compare the industrial switch against similar models on this site, then request a quote for volume pricing and lead time.

Technical Specifications

Ports2 of 10/100 Base-T(X) RJ45 Port & 2 of 100Base-FX Optic
Weight0.2 kg
Voltage12 to 48 V DC
Humidity5 to 95% Non-Condensing
MaterialMetal
Warranty1 Year
Bandwidth1.6 Gbps
Item CodeIES 102-2F MM SC-DC
StandardsIEEE802.3 & IEEE802.3u
SensitivityRx:: <-34 dbm
Mounting typeWall Mounted & DIN Rail
Packer DetailsDeron Heights, 504 & 505, Baner Rd, Opp. Hotel Mahabaleshwar, Varsha Park Society, Baner, Pune, Maharashtra-411069
Number of Ports4
Dimensions LxWxH3.2x10.3x8.3 cm
Protection ClassIP40
Country of originIndia
Power Consumption<4 W
Additional DetailsCache Size: 448 K bits
Common/Generic NameEthernet Switch
Storage Temperature-40 to 85 deg C
Manufacturer DetailsDeron Heights, 504 & 505, Baner Rd, Opp. Hotel Mahabaleshwar, Varsha Park Society, Baner, Pune, Maharashtra-411069
Operating Temperature-40 to 85 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹9,990

Contact OEM for bulk pricing & discounts

View OEM Profile
