Product Description

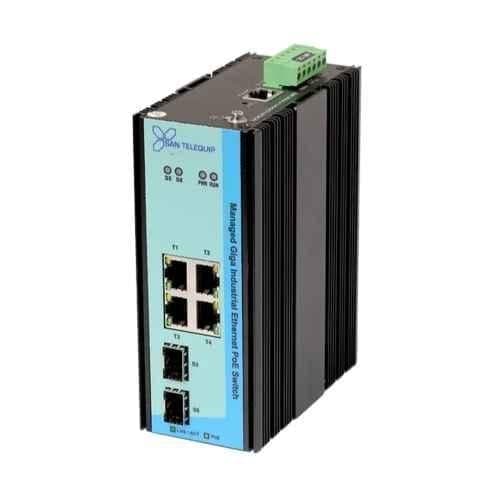

San Telequip 10/100/1000M 4-RJ45 2-SFP Industrial Giga PoE Managed Switch, IPSMG 304-2S A

A list price of ₹31,390: the San Telequip 10/100/1000M 4-RJ45 2-SFP Industrial Giga PoE Managed Switch, IPSMG 304-2S A is San Telequip's industrial switch for shop-floor and control-cabinet networking in plants and substations. Core specifications cover network protocols of TCP, UDP, ARP, ICMP & ICMP Router Discovery, power consumption of 7 & 8 W, input voltage of 48-58 V DC and voltage of 48 V DC. Supporting specifications include protection class IP40, storage temperature -40 to 85 deg C, number of ports 10 and dimensions lxwxh 13.8x10.7x5.6 cm. Network teams choose it where a commercial-grade switch would not survive the cabinet. It is listed at ₹31,390 on Industrial Hardwares, supplied through verified OEMs and distributors. Request a quote on the industrial switch to confirm stock, delivery timelines and pricing for your order quantity.

Technical Specifications

PortsCopper: 4 or 8 * 10/100/1000M Auto Negotiation, Auto MDI / MDIX ESD, EFT Protection, Cat5/Cat5e/Cat6 & ?100m Fiber: 2x1.25G/155M SFP Slot Type TX Power & RX Sensitivity based on SFP Modules
Weight0.54 kg
Voltage48 V DC
Humidity5-95%
Warranty1 Year
Item CodeIPSMG 304-2S A
StandardsIEEE802.3 10BASE-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-XIEEE802.3x, IEEE802.1Q VLAN, IEEE802.1w RSTP, IEEE802.1s MSTP, IEEE802.1d STP & IEEE802.1ag
Input CurrentMax.0.32A at 24 V DC & Max 0.27A at 24 V DC
Input Voltage48-58 V DC
Mounting typeWall Mounted & DIN Rail
Packer DetailsDeron Heights, 504 & 505, Baner Rd, Opp. Hotel Mahabaleshwar, Varsha Park Society, Baner, Pune, Maharashtra-411069
Number of Ports10
Dimensions LxWxH13.8x10.7x5.6 cm
Protection ClassIP40
Country of originIndia
Network protocolsTCP, UDP, ARP, ICMP & ICMP Router Discovery
Power Consumption7 & 8 W
Additional DetailsSurge Protection: 6 kV Mode: Store & Forward Jumbo Frame: 9.6 K LED Indicator: PWR, RUN, Speed, Link/Act & PoE
Switching Capacity55 Gbps
Common/Generic NameEthernet Switch
Storage Temperature-40 to 85 deg C
Working Temperature-40 to 85 deg C
Manufacturer DetailsDeron Heights, 504 & 505, Baner Rd, Opp. Hotel Mahabaleshwar, Varsha Park Society, Baner, Pune, Maharashtra-411069
