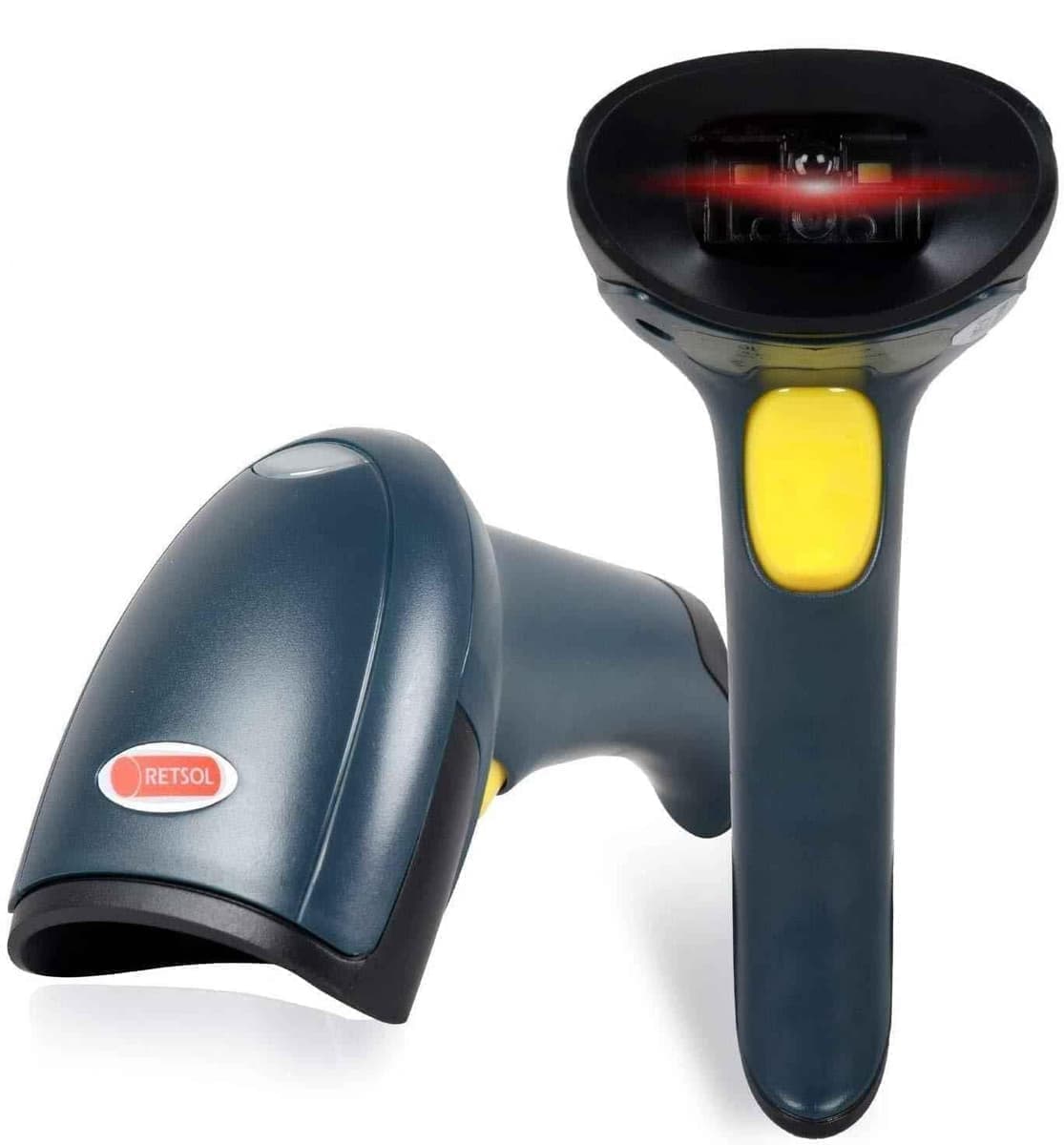

Retsol D2030/D2060 Handheld Wired Laser USB 2D Scanner
Retsol D2030/D2060 Handheld Wired Laser USB 2D Scanner

Retsol D2030/D2060 Handheld Wired

Retsol
OEM Verified

Product Description

Retsol D2030/D2060 Handheld Wired Laser USB 2D Scanner

Retsol offers the Retsol D2030/D2060 Handheld Wired Laser USB 2D Scanner as a barcode scanner intended for shop-floor traceability where every unit is scanned at each stage. Published specifications list interface of Support: USB, scanning accuracy of Ranges: 5mil: 20mm‐70mm 13mil: 40mm‐160mm 1D Minimum Resolution: 4mil, light source of Aiming: 617 nm LED Illumination: 617 nm LED and voltage of 5 V DC. Additional details cover operating temperature 0 to 50 deg C, storage temperature -40 to 70 deg C, dimensions lxwxh 150x95x98 mm and weight 240 g. IT teams standardise on it where plug-and-play keyboard-wedge input keeps integration effort near zero. It is listed at ₹2,661 on Industrial Hardwares, supplied through verified OEMs and distributors. Full specifications, current availability and bulk pricing for the barcode scanner are listed above — request a quote to get a delivered price for your quantity.

Technical Specifications

Pitch360, ±65, ±60 deg
Width11 cm
Height9 cm
Length19 cm
Weight240 g
Current300 mA Standby: 80 mA
Voltage5 V DC
ContrastPrint: 25% Minimum Reflective Difference
Humidity0 to 95% Relative Humidity, Non Condensing
Warranty1 Year Manufacturer Warranty
InterfaceSupport: USB
Item CodeD2030/D2060
Light SourceAiming: 617 nm LED Illumination: 617 nm LED
Field of View45 Hx35 V deg
Packer DetailsLittle Tech Co, C-213, Sector 63, NOida, Gautam Buddha Nagar, Uttar Pradesh, 201301 , Gautam Buddha Nagar, Uttar Pradesh-201301, India , Phone: +91-8448233444
Dimensions LxWxH150x95x98 mm
Country of originIndia
Decode Capability1-D: UPC, EAN, Code128, Code39, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, Gs1 DataBar, China Postal, Korean Postal etc 2-D: PDF417, Micro PDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin
Scanning AccuracyRanges: 5mil: 20mm‐70mm 13mil: 40mm‐160mm 1D Minimum Resolution: 4mil
Common/Generic NameBarcode Scanner
Storage Temperature-40 to 70 deg C
Customer Care Number8048602817
Manufacturer DetailsLittle Tech Co, C-213, Sector 63, NOida, Gautam Buddha Nagar, Uttar Pradesh, 201301 , Gautam Buddha Nagar, Uttar Pradesh-201301, India , Phone: +91-8448233444
Operating Temperature0 to 50 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹2,661

Contact OEM for bulk pricing & discounts

View OEM Profile
