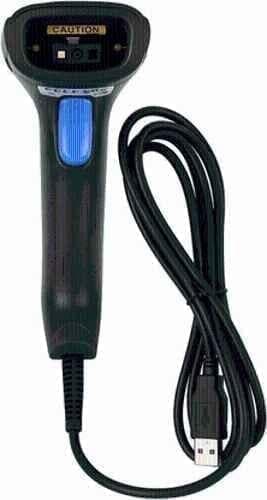

Retsol 2D 300 scan/sec 85mA USB Wired Camera Handheld Barcode Scanner, D-1020N
Retsol 2D 300 scan/sec 85mA USB Wired Camera Handheld Barcode Scanner, D-1020N

Retsol 2D 300 scan/sec 85mA USB

Retsol
OEM Verified

Product Description

Retsol 2D 300 scan/sec 85mA USB Wired Camera Handheld Barcode Scanner, D-1020N

The Retsol D-1020N handheld barcode scanner offers rapid 2D scanning at 300 scans per second, ensuring efficient and accurate data capture. Equipped with a USB interface, it delivers seamless connectivity and ease of use. Operating at 85 mA with a standby current of just 45 mA, this scanner balances performance and energy efficiency. Its wide scan angles—55 degrees inclination and 65 degrees elevation—combined with a pitch tolerance of 65 degrees, enable flexible scanning positions. With a maximum light immunity of 100,000 lx, the Retsol D-1020N performs reliably even in brightly lit environments.

Technical Specifications

ModelD-1020N
Weight0.5 kg
Barcode2 D
MaterialABS
InterfaceUSB
Scan Rate300 scan/sec
Scan AngleInclination Scan Angle: 55 deg Elevation Scan Angle: 65 deg
Scanner TypeCamera
CertificationCE, FCC & RoHS
Depth of Field2-35 mm
Packer DetailsSuzhou Supermax Smart System Co., Ltd. is�Building 57, No. 2 Dongfu Road, Suzhou Industrial Park, Jiangsu, China
Roll Tolerance30 deg
Skew Tolerance60 deg
Pitch Tolerance65 deg
Standby Current45 mA
Working Current85 mA
Dimensions LxWxH20x10x20 cm
Importer DetailsRugteck Posiflex Technology (India) Pvt Lt 7/3, 3rd Floor, Jeet Dynasty, Swamy Vivekananda Rd, Nagavarapalya, Bengaluru, Karnataka 560093
Motion Tolerance90 inch/sec
Shock Resistance1.5 m
Country of originChina
Additional DetailsMaximum Light Immunity: 100000 lx
Common/Generic NameBarcode Scanner
Operational Voltage5 VDC
Manufacturer DetailsSuzhou Supermax Smart System Co., Ltd. is�Building 57, No. 2 Dongfu Road, Suzhou Industrial Park, Jiangsu, China

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹2,814

Contact OEM for bulk pricing & discounts
