Product Description

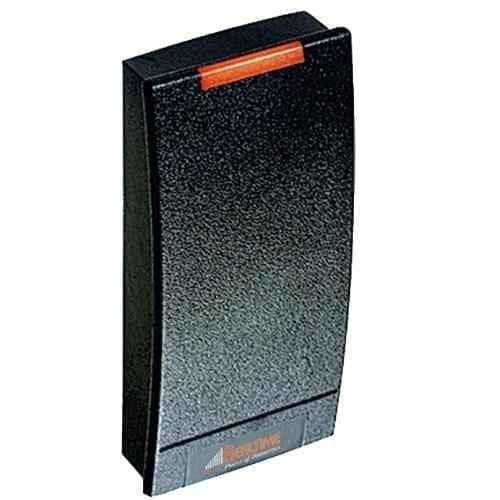

Realtime RF-10M Proximity Card Reader

Realtime offers the Realtime RF-10M Proximity Card Reader as a access control unit intended for controlled entry at gates, server rooms and restricted production zones. Published specifications list speed of Response Speed: >0.2 Sec, range of Proximity Range: 2-15 cm, technology of Wiegand: 26 Bits 34 Bits ABA Standard Format Data Output and dimensions lxwxh of 78x44x16 mm. The datasheet also lists weight 200 g, warranty details 1 Year, model RF-10M and current Working: 70mA. Admin and security teams pick it when door events must reconcile with HR and visitor logs. It is listed at ₹1,498 on Industrial Hardwares, supplied through verified OEMs and distributors. Compare the access control unit against similar models on this site, then request a quote for volume pricing and lead time.

Technical Specifications

ModelRF-10M
RangeProximity Range: 2-15 cm
SpeedResponse Speed: >0.2 Sec
Weight200 g
CurrentWorking: 70mA
DistanceCommunication Distance: 100 m Proximity Time Distance: >0.5 Sec
TechnologyWiegand: 26 Bits 34 Bits ABA Standard Format Data Output
Power Supply12 V DC
Number of LED2 (Red, Green)
Indicator TypeSound: Buzzer (Built in Loudspeaker)
Packer DetailsRealtime Biometrics Pvt Ltd, C-83, Ganesh Nagar Pandav Nagar complex Delhi-110092
Ambient Humidity10-90%
Dimensions LxWxH78x44x16 mm
Warranty Details1 Year
Country of originIndia
Ambient Temperature-25 to 75 Deg C
Card Reader SupportUEM 4100 ID Card Compatible: 64 Bits Manchester Code
Common/Generic NameCard Reader
Customer Care Number8860 8860 86
Manufacturer DetailsRealtime Biometrics Pvt Ltd, C-83, Ganesh Nagar Pandav Nagar complex Delhi-110092

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹1,498

Contact OEM for bulk pricing & discounts
