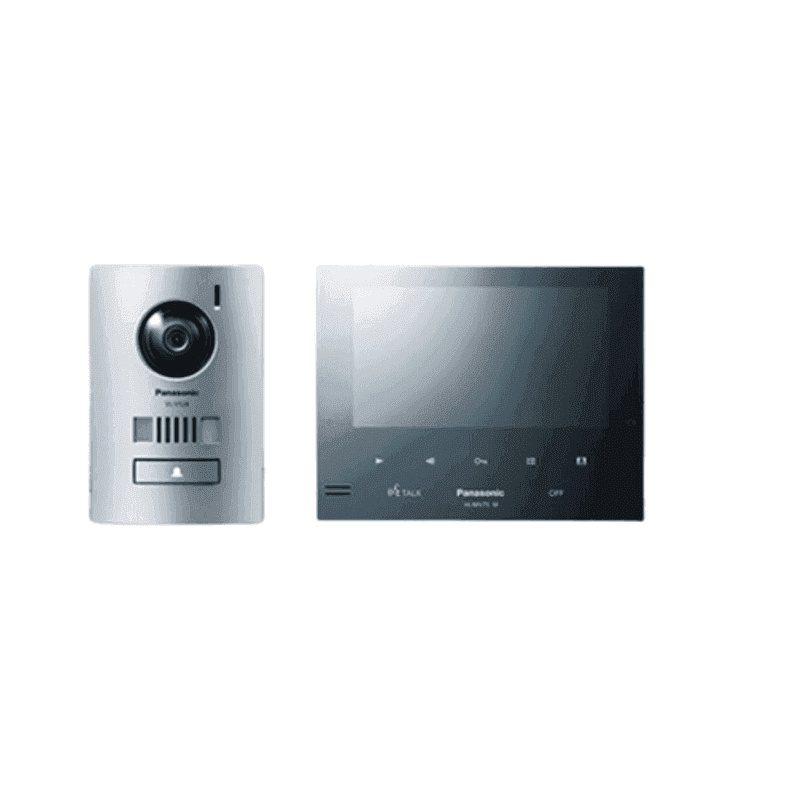

Panasonic VL-SV74 Video Door Phone

Built by Panasonic, the Panasonic VL-SV74 Video Door Phone is a access control unit aimed at shift-based door access tied into attendance and visitor records. Core specifications cover display resolution of 800x480 Pixel, image sensor of 1/3 inch CMOS Sensor (Approx. 1.3 M Pixel), frequency of 50/60 Hz and power consumption of Standby: 2.3 W & Operating: 11.3 W. Supporting specifications include voltage Monitor: 220-240 V AC, protection class IP44, view angle Horizontally: 85 deg & Vertically: Approx. 54 deg and display size 7 inch. Integrators use it where door hardware, readers and the software stack have to interoperate cleanly. It is listed at ₹17,209 on Industrial Hardwares, supplied through verified OEMs and distributors. Request a quote on the access control unit to confirm stock, delivery timelines and pricing for your order quantity.

Technical Specifications

ModelMonitor: VL-MV74 & Door Station: VL-V524
Weight2 kg
VoltageMonitor: 220-240 V AC
MaterialExternal: Flame Retardant ABS Resin
Frequency50/60 Hz
DimensionsMonitor: Approx. 158x201x26.5 mm (Excluding Protruding Sections) Door Station: Approx. 152x102x35.5 (21.5) mm (Excluding Sections Embedded into the Wall)
View AngleHorizontally: 85 deg & Vertically: Approx. 54 deg
Display Size7 inch
Image Sensor1/3 inch CMOS Sensor (Approx. 1.3 M Pixel)
Packer DetailsPanasonic India Private Limited, Panasonic India Private Limited,12th Floor, Ambience Tower, NH-8, Ambience Island, DLF Phase 3, Sector 24, Gurugram, Haryana 122002,1800 108 1333
Dimensions LxWxH13.5x20.1x2.55 cm
Protection ClassIP44
Country of originIndia
Installation TypeMonitor: Wall Mount (Mounting Bracket Supplied) Door Station: Door Station: Surface Mount (Mounting Base Supplied) & Flush Mount (Mount Box Sold Separately)
Power ConsumptionStandby: 2.3 W & Operating: 11.3 W
Relative HumidityUp to 90 % Non-condensing
Display Resolution800x480 Pixel
Ambient TemperatureMonitor: 0 to 40 deg C Door Station: -15 to 55 deg C
Common/Generic NameVdeo Door Phone
Manufacturer DetailsPanasonic India Private Limited, Panasonic India Private Limited,12th Floor, Ambience Tower, NH-8, Ambience Island, DLF Phase 3, Sector 24, Gurugram, Haryana 122002,1800 108 1333
