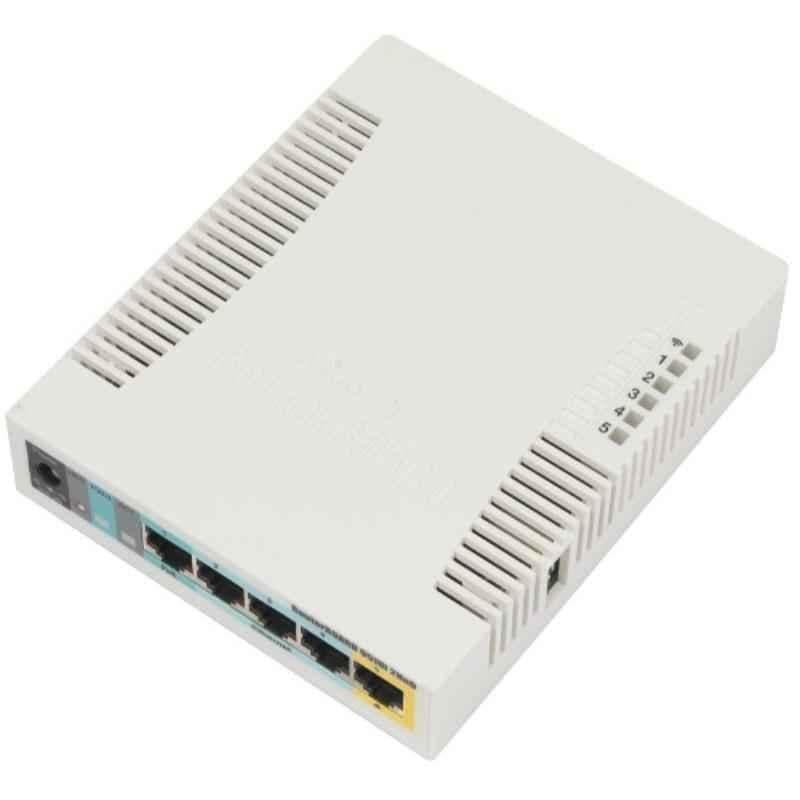

Mikrotik Wireless SOHO AP Router Board with 5 Ethernet Ports , RB951Ui-2HnD
Mikrotik Wireless SOHO AP Router Board with 5 Ethernet Ports , RB951Ui-2HnD

Mikrotik Wireless SOHO AP Router

Mikrotik
OEM Verified

Product Description

Mikrotik Wireless SOHO AP Router Board with 5 Ethernet Ports , RB951Ui-2HnD

Specified at nominal frequency CPU: 600 MHz and a list price of ₹8,662, the Mikrotik Wireless SOHO AP Router Board with 5 Ethernet Ports , RB951Ui-2HnD is a Mikrotik wireless access point for high-density areas where many clients associate at once. Published specifications list nominal frequency of CPU: 600 MHz, wireless transmit power of Wireless 2.4 GHz: 6 MBit/s: 30 dBm, 54 MBit/s: 25 dBm, MCS0: 30 dBm & MCS7: 23 dBm, input voltage of PoE In: 8-30 V DC Jack: 8-30 V and voltage of Adapter: 24 V. It is further specified with certification CE, FCC, IC, EAC & ROHS, storage capacity 128 MB NAND, number of usb ports 1 and dimensions 113x138x29 mm. Network teams evaluate it on throughput, client density, roaming behaviour and controller support. It is listed at ₹8,662 on Industrial Hardwares, supplied through verified OEMs and distributors. Bulk and project pricing for the wireless access point is quoted on request, along with current availability.

Technical Specifications

CPUAR9344 Core Count: 1
RAM128 MB
TypeUSB Slot: USB type A
InputDC: 2 (DC jack, PoE-IN)
PowerMax: 24 W Max without Attachment 7 W
Weight248 g
CurrentMax Total: 500 mA Max Out Per Port at 18-30 V: 500 mA Adapter: 0.8 Amp
VoltageAdapter: 24 V
WirelessCapabilities: Wireless 2.4 GHz Max Data Rate: 300 Mbit/s, Wireless 2.4 GHz Number of Chains: 2, Wireless 2.4 GHz Standards: 802.11b/g/n, Antenna Gain dBi for 2.4 GHz: 2.5, Wireless 2.4 GHz Hip Model: AR9344 & Wireless 2.4 GHz Generation: Wi-Fi 4
Item CodeRB951Ui-2HnD
Port Type10/100 Ethernet Ports: 5 PoE Out: Ether5
Dimensions113x138x29 mm
SensitivityWireless 2.4 GHz: 6 MBit/s: -96, 54 MBit/s: -80, MCS0: -96 & MCS7: -78
ArchitectureMIPSBE
CertificationCE, FCC, IC, EAC & ROHS
Input VoltagePoE In: 8-30 V DC Jack: 8-30 V
Packer DetailsMikrotik India Green Park New Delhi 110016
Dimensions LxWxH113x138x29 mm
Importer DetailsMikrotik India Green Park New Delhi 110016
Operating SystemRouterOS
Package Contents1 Pc Router Board & 1 Pc Power Adapter
Storage Capacity128 MB NAND
Country of originLatvia
Nominal FrequencyCPU: 600 MHz
Additional DetailsMTBF: Approximately 100'000 hr at 25 deg C
Ambient Temperature-20 to 60 deg C
Common/Generic NameRouter Board
Number of Usb Ports1
Manufacturer DetailsSIA Mikrotkls, Brivibas gatve 214i, Riga, LV-1039 LATVIA
Wireless Transmit PowerWireless 2.4 GHz: 6 MBit/s: 30 dBm, 54 MBit/s: 25 dBm, MCS0: 30 dBm & MCS7: 23 dBm

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹8,662

Contact OEM for bulk pricing & discounts
