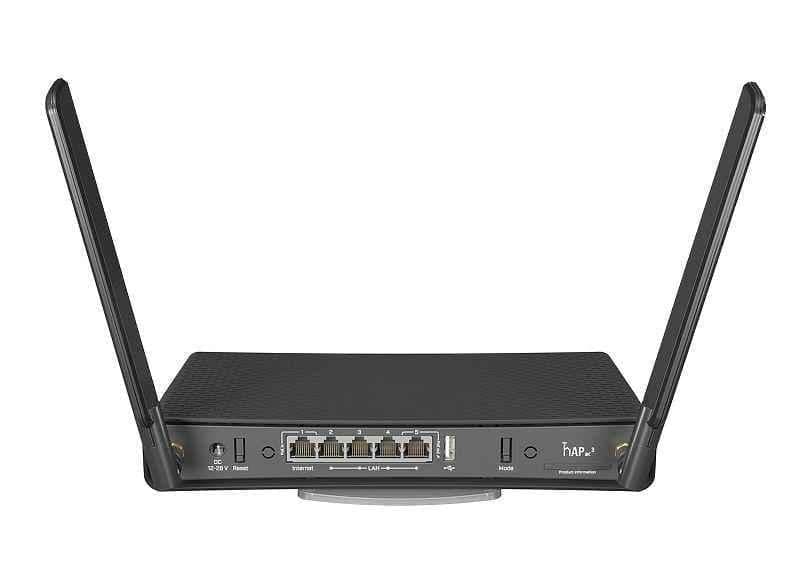

Mikrotik HAP AC3 Wireless Dual Band Router with 5 Ethernet Port, RBD53iG-5HacD2HnD
Mikrotik HAP AC3 Wireless Dual Band Router with 5 Ethernet Port, RBD53iG-5HacD2HnD

Mikrotik HAP AC3 Wireless Dual

Mikrotik
OEM Verified

Product Description

Mikrotik HAP AC3 Wireless Dual Band Router with 5 Ethernet Port, RBD53iG-5HacD2HnD

Rated at nominal frequency 716 MHz and a list price of ₹13,959, this Mikrotik wireless access point — the Mikrotik HAP AC3 Wireless Dual Band Router with 5 Ethernet Port, RBD53iG-5HacD2HnD — is built for Wi-Fi coverage across warehouse aisles, office floors and campus areas. Core specifications cover nominal frequency of 716 MHz, power consumption of 30 W Without Attachments: 12 W, voltage of Jack Input Voltage: 12-28 V DC PoE Input: 18-28 V and ip rating of IP20. The datasheet also lists certification and approval CE, FCC, IC, EAC & ROHS, storage capacity 128 MB NAND, dimensions 251x129x39 mm and dimensions lxwxh 251x129x39 mm. Network teams evaluate it on throughput, client density, roaming behaviour and controller support. It is listed at ₹13,959 on Industrial Hardwares, supplied through verified OEMs and distributors. Compare the wireless access point against similar models on this site, then request a quote for volume pricing and lead time.

Technical Specifications

CPUCode: IPQ-4019 Core Count: 4
RAM256 MB
InputNumber of DC: 2 (DC Jack, PoE-IN)
Weight248 g
CurrentMax USB: 1 Amp
VoltageJack Input Voltage: 12-28 V DC PoE Input: 18-28 V
USB port10/100/1000 Ethernet Ports: 5 Number of 1G Ethernet Ports with PoE-out: 1 Number of USB: 1 & USB slot type A
IP RatingIP20
Item CodeRBD53iG-5HacD2HnD
Dimensions251x129x39 mm
SensitivityWireless 2.4 GHz 1 MBit/s: -100, 11 MBit/s: -94, 6 MBit/s: -96, 54 MBit/s: -78, MCS0: -96, MCS7:-73 Wireless 5 GHz 6 MBit/s: -96, 54 MBit/s: -80, MCS0: -96, MCS7:-75 & MCS9:-70
ArchitectureARM 32bit
Packer DetailsMikrotik India Green Park New Delhi 110016
Transmit PowerWireless 2.4 GHz 1 MBit/s: 25 dBm, 11 MBit/s: 25 dBm, 6 MBit/s: 26 dBm, 54 MBit/s: 23 dBm, MCS0:26 dBm, MCS7: 22 dBm Wireless 5 GHz 6 MBit/s: 26 dBm, 54 MBit/s: 22 dBm, MCS0: 26 dBm, MCS7: 21 dBm & MCS9: 19 dBm
Dimensions LxWxH251x129x39 mm
Importer DetailsMikrotik India Green Park New Delhi 110016
Operating SystemRouter OS
Storage Capacity128 MB NAND
Country of originLatvia
Nominal Frequency716 MHz
Power Consumption30 W Without Attachments: 12 W
Ambient Temperature-40 to 70 deg C
Common/Generic NameRouter
Manufacturer DetailsSIA Mikrotkls, Brivibas gatve 214i, Riga, LV-1039 LATVIA
Certification and ApprovalCE, FCC, IC, EAC & ROHS
