Mikrotik HAP AC Router Board, RB962UiGS-5HacT2HnT
Mikrotik HAP AC Router Board, RB962UiGS-5HacT2HnT

Mikrotik HAP AC Router Board, RB962

Mikrotik
OEM Verified

Product Description

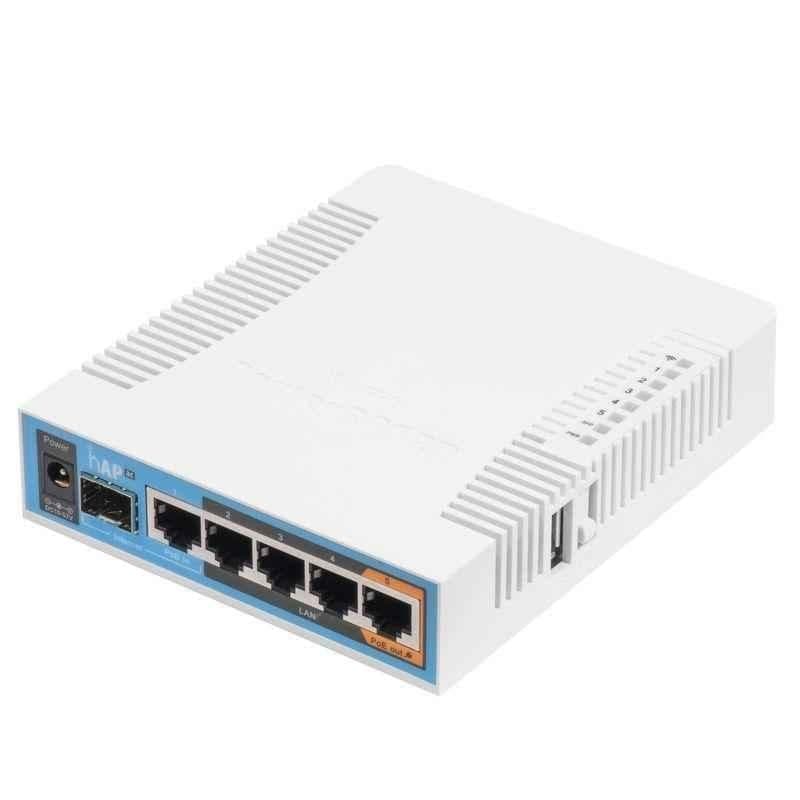

Mikrotik HAP AC Router Board, RB962UiGS-5HacT2HnT

The Mikrotik HAP AC Router Board, RB962UiGS-5HacT2HnT is a Mikrotik wireless access point built for high-density areas where many clients associate at once. The unit is specified with nominal frequency of 720 MHz, power consumption of 17 W, voltage of Jack Input Voltage: 11-57 V DC PoE Input: 11-57 V and ip rating of IP20. It is further specified with certification and approval CE, FCC, IC, EAC & ROHS, storage capacity 16 MB, dimensions 114x137x29 mm and dimensions lxwxh 114x137x29 mm. Network teams evaluate it on throughput, client density, roaming behaviour and controller support. It is listed at ₹17,594 on Industrial Hardwares, supplied through verified OEMs and distributors. Bulk and project pricing for the wireless access point is quoted on request, along with current availability.

Technical Specifications

CPUCode: QCA9558 Core Count: 1
RAM128 MB
InputNumber of DC: 2 (DC Jack, PoE-IN)
OutputMax Out Per Port: 700 mA Max Out Per Port Output: 350 mA Max Total: 700 mA
Weight248 g
CurrentMax USB: 1 Amp
VoltageJack Input Voltage: 11-57 V DC PoE Input: 11-57 V
USB port10/100/1000 Ethernet Ports: 5 SFP Ports: 1 Peripherals Number of USB Ports: 1 & USB type A
IP RatingIP20
Item CodeRB962UiGS-5HacT2HnT
Dimensions114x137x29 mm
SensitivityWireless 2.4 GHz 1 MBit/s: -100, 11 MBit/s: -94, 6 MBit/s: -96, 54 MBit/s: -81, MCS0: -96, MCS7:-77 Wireless 5 GHz 6 MBit/s: -96, 54 MBit/s: -81, MCS0: -96, MCS7:-77 & MCS9:-72
ArchitectureMIPSBE
Packer DetailsMikrotik India Green Park New Delhi 110016
Transmit PowerWireless 2.4 GHz 1 MBit/s: 29 dBm, 11 MBit/s: 29 dBm, 6 MBit/s: 29 dBm, 54 MBit/s: 26 dBm, MCS0:29 dBm, MCS7: 25 dBm Wireless 5 GHz 6 MBit/s: 28 dBm, 54 MBit/s: 25 dBm, MCS0: 28 dBm, MCS7: 24 dBm & MCS9: 21 dBm
Dimensions LxWxH114x137x29 mm
Importer DetailsMikrotik India Green Park New Delhi 110016
Operating SystemRouter OS
Storage Capacity16 MB
Country of originLatvia
Nominal Frequency720 MHz
Power Consumption17 W
Ambient Temperature-40 to 70 deg C
Common/Generic NameRouter Board
Manufacturer DetailsSIA Mikrotkls, Brivibas gatve 214i, Riga, LV-1039 LATVIA
Certification and ApprovalCE, FCC, IC, EAC & ROHS

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹17,594

Contact OEM for bulk pricing & discounts

View OEM Profile
