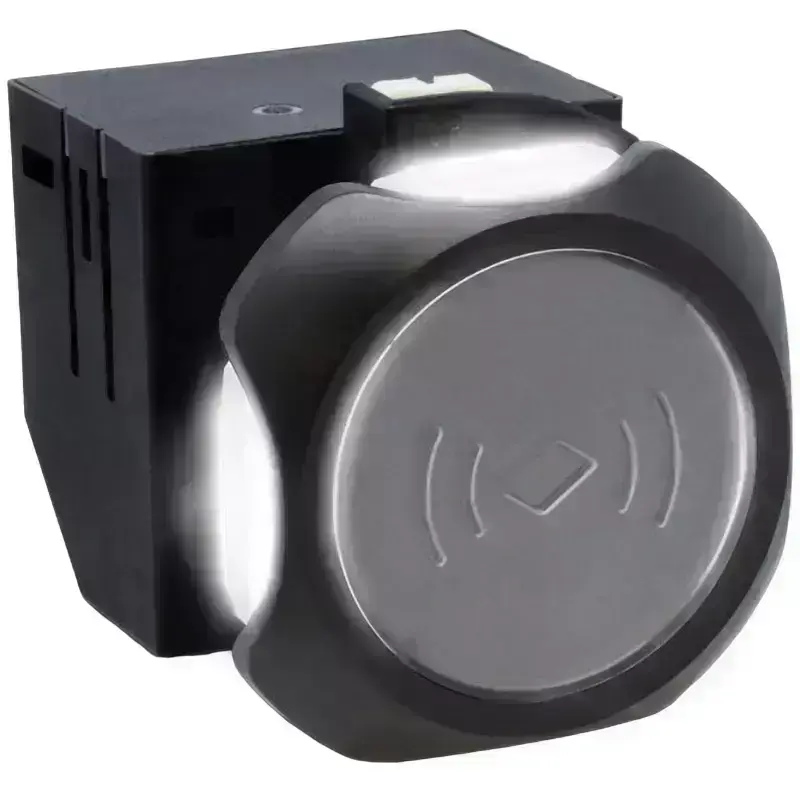

IDEC KW2D Series Smart RFID Reader, KW2D-R100Q4E
IDEC KW2D Series Smart RFID Reader, KW2D-R100Q4E

IDEC KW2D Series Smart RFID Reader,

IDEC
OEM Verified
Smart RFID Reader

Product Description

IDEC KW2D Series Smart RFID Reader, KW2D-R100Q4E

Built by IDEC, the IDEC KW2D Series Smart RFID Reader, KW2D-R100Q4E is a access control unit aimed at controlled entry at gates, server rooms and restricted production zones. Core specifications cover maximum power consumption of 2.4 W, rated voltage of DC24, withstand voltage of AC500 (V/min) and rated insulation voltage of DC50 V. Additional details cover protection class IP65F/IP67F, mass About 70 (g), model no KW2D-R100Q4E and letter type UTF-8 / ASCII / Shift-JIS / GB2312 / ISO8859-1. Integrators use it where door hardware, readers and the software stack have to interoperate cleanly. It is listed at ₹63,719 on Industrial Hardwares, supplied through verified OEMs and distributors. Full specifications, current availability and bulk pricing for the access control unit are listed above — request a quote to get a delivered price for your quantity.

Technical Specifications

MassAbout 70 (g)
Model NoKW2D-R100Q4E
Letter TypeUTF-8 / ASCII / Shift-JIS / GB2312 / ISO8859-1
Monotaro ID61577444
Is ConsumableN
Rated VoltageDC24
Import CountryDirect Import from Japan
Inrush Current25 A or less
Main Unit TypeStandard type
Terminal ShapePush-in terminal
Type of ProductSmart RFID Reader
Ambient HumidityUse: 10-95 (however, no condensation)
Protection ClassIP65F/IP67F
Country of OriginJapan
Relative HumidityStorage: 10-95 (however, no condensation)
Withstand VoltageAC500 (V/min)
Ambient TemperatureUse: -25 to +55 ℃) (however, do not freeze), Storage: -40 to +80 ℃) (however, do not freeze)
Insulation Resistance100 or more (DC500V mega)
Communication FunctionModbus TCP Server
Mounting Hole Diameter22 Φmm
Direct Import from JapanTRUE
Rated Insulation VoltageDC50 V
Maximum Power Consumption2.4 W
Name of Manufacturer/Packer/ImporterIDEC Corporation

Need this integrated into a custom solution?

Tell us your use case →

Use Cases

1

Smart RFID Reader

Pricing

Listed Price

₹63,719

Contact OEM for bulk pricing & discounts
