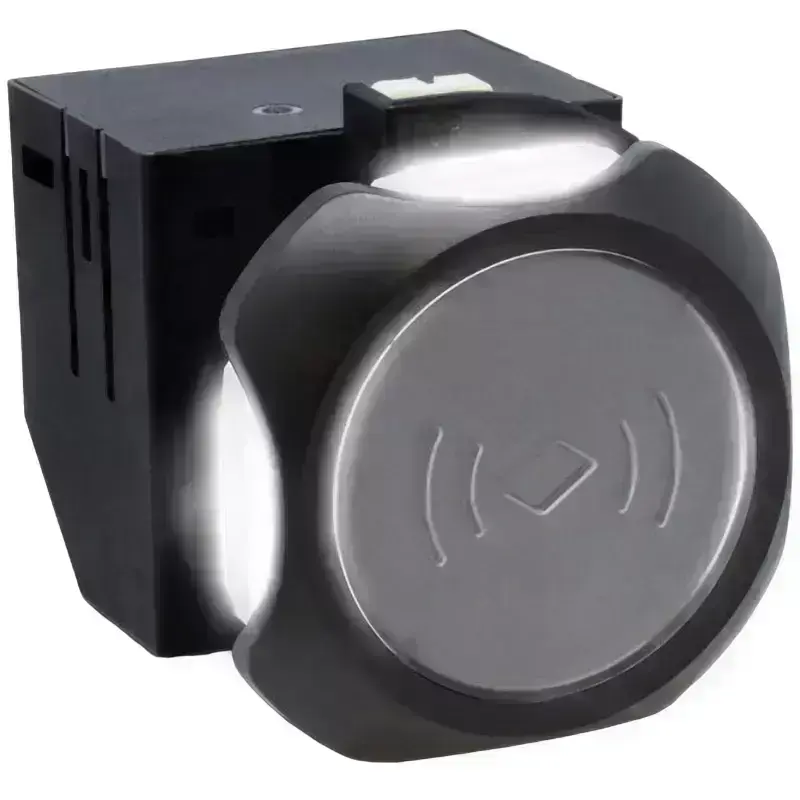

IDEC KW2D Series Smart RFID Reader, KW2D-RH100Q4E
IDEC KW2D Series Smart RFID Reader, KW2D-RH100Q4E

IDEC KW2D Series Smart RFID Reader,

IDEC
OEM Verified
Smart RFID Reader

Product Description

IDEC KW2D Series Smart RFID Reader, KW2D-RH100Q4E

Built by IDEC, the IDEC KW2D Series Smart RFID Reader, KW2D-RH100Q4E is a access control unit aimed at multi-door installations where every entry event has to be logged. Core specifications cover maximum power consumption of 2.4 W, rated voltage of DC24, withstand voltage of AC500 (V/min) and rated insulation voltage of DC50 V. It is further specified with protection class IP65F/IP67F, mass About 70 (g), model no KW2D-RH100Q4E and letter type UTF-8 / ASCII / Shift-JIS / GB2312 / ISO8859-1. Admin and security teams pick it when door events must reconcile with HR and visitor logs. It is listed at ₹63,719 on Industrial Hardwares, supplied through verified OEMs and distributors. Bulk and project pricing for the access control unit is quoted on request, along with current availability.

Technical Specifications

MassAbout 70 (g)
Model NoKW2D-RH100Q4E
Letter TypeUTF-8 / ASCII / Shift-JIS / GB2312 / ISO8859-1
Monotaro ID61577453
Is ConsumableN
Rated VoltageDC24
Import CountryDirect Import from Japan
Inrush Current25 A or less
Main Unit TypeHolder type
Terminal ShapePush-in terminal
Type of ProductSmart RFID Reader
Ambient HumidityUse: 10-95 (however, no condensation)
Protection ClassIP65F/IP67F
Country of OriginJapan
Relative HumidityStorage: 10-95 (however, no condensation)
Withstand VoltageAC500 (V/min)
Ambient TemperatureUse: -25 to +55 ℃) (however, do not freeze), Storage: -40 to +80 ℃) (however, do not freeze)
Insulation Resistance100 or more (DC500V mega)
Communication FunctionModbus TCP Server
Mounting Hole Diameter22 Φmm
Direct Import from JapanTRUE
Rated Insulation VoltageDC50 V
Maximum Power Consumption2.4 W
Name of Manufacturer/Packer/ImporterIDEC Corporation
