IDEC A6 Series Indicator (Square)
IDEC
OEM Verified
A6 Series Indicator (Square)
Product Description

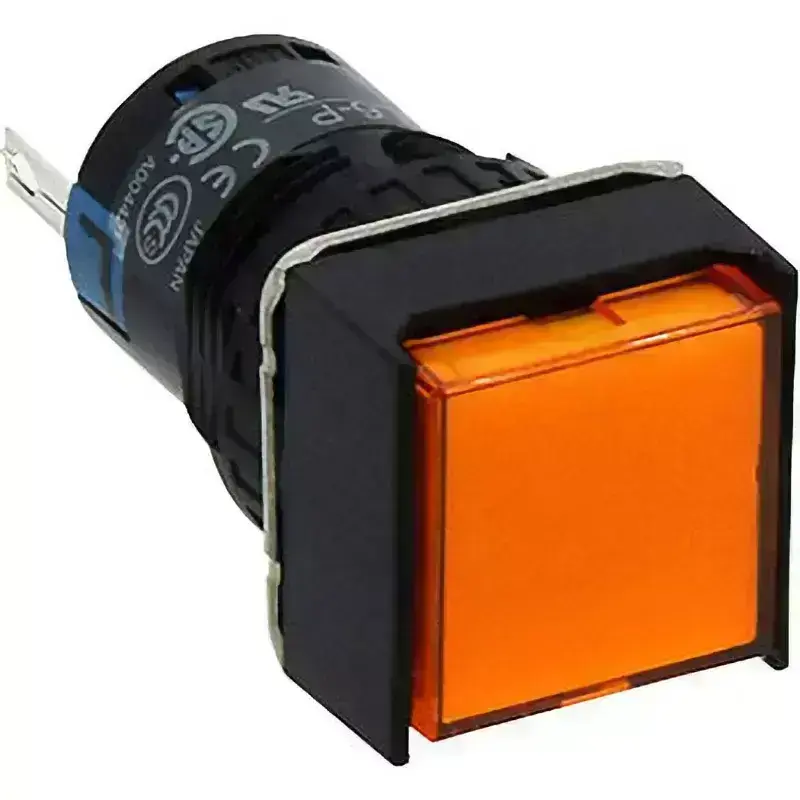

IDEC A6 Series Indicator (Square) Solder terminal Amber, AL6Q-P1A
Buy IDEC A6 Series Indicator (Square) Solder terminal Amber, AL6Q-P1A Online in India on Industrybuying.com. All Genuine Products ✔ Lowest Prices ✔ Free Shipping ✔ EMI & COD
Product Gallery
Technical Specifications
Model NoAL6Q-P1A
Insulation100 or more (with DC500V mega)
Monotaro ID59776954
Light ColourAmber
Is ConsumableN
Import CountryDirect Import from Japan
Terminal ShapeSolder terminal
Type of ProductA6 Series Indicator (Square)
Contact MaterialGold on silver, crossbar contacts
Lamp Voltage (V)DC5
Protection ClassIP40
Country of OriginJapan
Contact Resistance50 mΩ or Less (Initial Value)
Illuminated ColorsAmber
Operation MechanismSquare
Storage Temperature-30-80 (no icing)
Type of IlluminationLED
Power Consumption (VA)1.6
Direct Import from JapanTRUE
Rated Carrying Current (A)3
Insulation_Resistance (MΩ)100 or more (with DC500V mega)
Withstand voltage (V / min)Illuminated part: AC2000 (between charging part and earth)
Rated Insulation Voltage (V)250
Mounting Hole Diameter (Φmm)16.2(0 - 0.2)
Operating Ambient Humidity (% RH)45 to 85 (no condensation)
Vibration Resistance (Destruction)5-55Hz, single amplitude 0.75mm
Vibration Resistance (Malfunction)5-55Hz, single amplitude 0.75mm
Operation Ambient Temperature (°C)-25 to 55 (no icing)
Name of Manufacturer/Packer/ImporterIDEC Corporation
Need this integrated into a custom solution?
Tell us your use case →
Use Cases
1
A6 Series Indicator (Square)
Pricing
Listed Price
₹1,651
Contact OEM for bulk pricing & discounts
