CP Plus 5MP HD CCTV 4 Pcs Bullet, 4 Pcs Dome Camera & 8CH DVR Combo Kit with All Accessories
CP Plus 5MP HD CCTV 4 Pcs Bullet, 4 Pcs Dome Camera & 8CH DVR Combo Kit with All Accessories

CP Plus 5MP HD CCTV 4 Pcs Bullet,

CP Plus
OEM Verified

Product Description

CP Plus 5MP HD CCTV 4 Pcs Bullet, 4 Pcs Dome Camera & 8CH DVR Combo Kit with All Accessories

Resolution Dome Camera: 5MP Bullet Camera: 5MP and a list price of ₹18,999: the CP Plus 5MP HD CCTV 4 Pcs Bullet, 4 Pcs Dome Camera & 8CH DVR Combo Kit with All Accessories is CP Plus's surveillance camera for round-the-clock site surveillance where recorded footage has to hold up as evidence. Key specifications include resolution of Dome Camera: 5MP Bullet Camera: 5MP, video resolution of DVR: 1920x1080, 1280x1024 & 1280x720, image sensor of Dome Camera: 5MP HQIS Pro Image Sensor Bullet Camera: 5MP HQIS Pro Image Sensor and camera of DVR: IP Input: 8+4 & Each Channel Upto 6MP. Supporting specifications include shutter speed Dome Camera: 1/50s (1/60s)-1/100 & 000s (Auto/Fixed) Bullet Camera: 1/50s (1/60s)-1/100 & 000s (Auto/Fixed), power consumption Dome Camera: 1.2 W (4W After IR LED Powered on) Bullet Camera: 1.2 W (4W After IR LED Powered on) DVR: <10 W (without HDD), voltage Dome Camera: 12 V DC @ ±15% Bullet Camera: 12 V DC @ ±15% DVR: 12 V DC and operating temperature Dome Camera: -20 to 50 deg C Bullet Camera: -20 to 50 deg C. Facility teams deploy it where camera uptime and footage quality are part of the compliance record. It is listed at ₹18,999 on Industrial Hardwares, supplied through verified OEMs and distributors. Request a quote on the surveillance camera to confirm stock, delivery timelines and pricing for your order quantity.

Technical Specifications

LensDome Camera: 3.6 mm (6 mm optional) Bullet Camera: 3.6 mm (6 mm optional)
ModesDVR: Backup: USB Device & Network
PortsDVR: Interface: 1 HDMI, 1 VGA & 2 USB 2.0
CameraDVR: IP Input: 8+4 & Each Channel Upto 6MP
Weight8.46 kg
ChannelDVR: Video: 8 Channel & BNC Audio: 1 Channel & RCA
CurrentDVR: 1.5 Amp
VoltageDome Camera: 12 V DC @ ±15% Bullet Camera: 12 V DC @ ±15% DVR: 12 V DC
HumidityDome Camera: 10-90% & (Humidity) ≤95% RH no Dew Bullet Camera: 10-90% & (Humidity) 595% RH no Dew
Warranty1 Year
Item CodeHD 8 Camera Kit 5 MP
Model No.CP-VCK-TD44H-E
S/N RatioDome Camera: ≥35 dB Bullet Camera: ≥35 dB
DimensionsBullet Camera: 154.6x71x71 mm DVR: 197x192x41 mm
Frame rateDome Camera: 20 FPS/12.5 FPS @ 5MP Bullet Camera: 20 FPS/12.5 FPS @ 5MP
ResolutionDome Camera: 5MP Bullet Camera: 5MP
Video InputDVR: 1 HDMI & 1 VGA
Audio OutputDVR: 1 Channel & RCA
Image SensorDome Camera: 5MP HQIS Pro Image Sensor Bullet Camera: 5MP HQIS Pro Image Sensor
Video OutputDVR: 4 Channel & BNC
Shutter SpeedDome Camera: 1/50s (1/60s)-1/100 & 000s (Auto/Fixed) Bullet Camera: 1/50s (1/60s)-1/100 & 000s (Auto/Fixed)
Number of LEDsDome Camera: 12 Pcs Bullet Camera: 12 Pcs
Packer DetailsAditya Infotech Ltd, A12 Sector 4 Noida, Telephone No: 0120-455556, Phone: +91-8448233444
Dimensions LxWxH20x15x10 cm
Operating SystemDVR: Embedded Linux

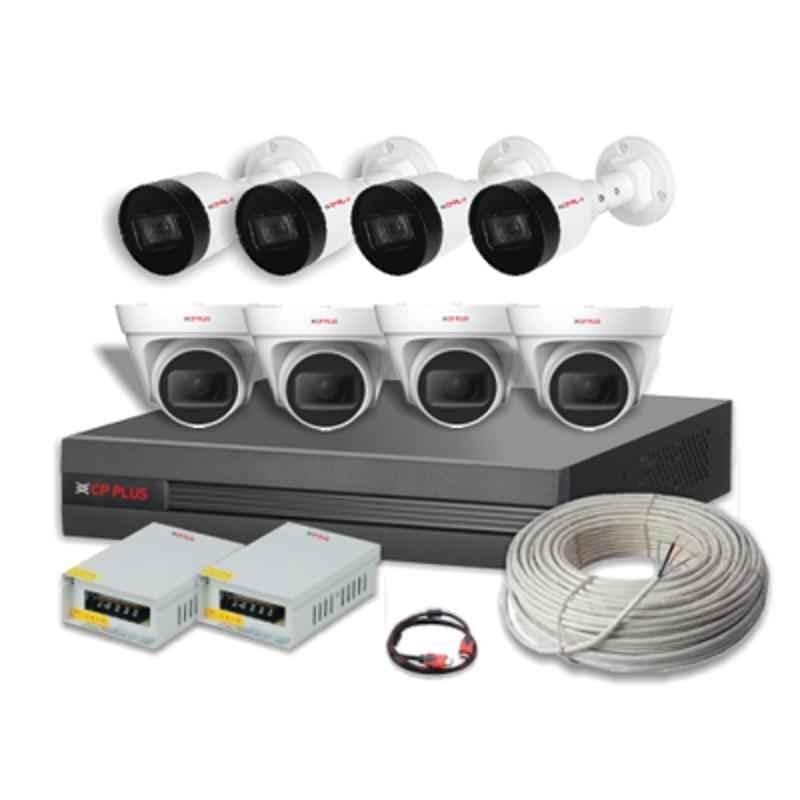

Package Contents4Pcs 5MP Dome Camera, 4Pcs Bullet Camera, 1Pc 8 Channel DVR without Hard Disk, 2Pcs 5A Power Supply, 90m Co-axial Cable & 1.5m HDMI Cable
Video ResolutionDVR: 1920x1080, 1280x1024 & 1280x720
Country of originIndia
Power ConsumptionDome Camera: 1.2 W (4W After IR LED Powered on) Bullet Camera: 1.2 W (4W After IR LED Powered on) DVR: <10 W (without HDD)
Hard Disk CapacityDVR: 1 SATA Port & Upto 6 TB
Common/Generic NameCamera & DVR
Working TemperatureDVR: -10 to 45 deg C @ 10-90% RH
Customer Care Number8800952952 & Email Id: support@cpplusworld.com
Manufacturer DetailsAditya Infotech Ltd, A12 Sector 4 Noida, Telephone No: 0120-455556, Phone: +91-8448233444
Minimum IlluminationDome Camera: 1Iux (IR LED On) & 3Iux (IR LED Off) Bullet Camera: 11ux (IR LED On) & 3Iux (IR LED Off)
Operating TemperatureDome Camera: -20 to 50 deg C Bullet Camera: -20 to 50 deg C
