CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome 2 Bullet Camera, 4Ch SMPS, 70m Cable, 500GB HDD & Connector
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome 2 Bullet Camera, 4Ch SMPS, 70m Cable, 500GB HDD & Connector

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

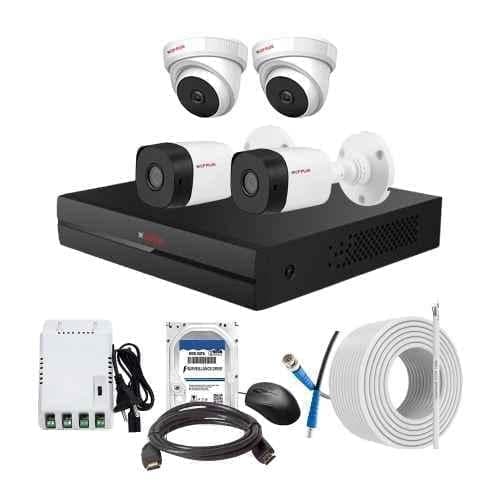

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome 2 Bullet Camera, 4Ch SMPS, 70m Cable, 500GB HDD & Connector

The CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit is a comprehensive surveillance solution that provides high-quality monitoring for both indoor and outdoor areas. With 2 dome and 2 bullet cameras, this kit ensures complete coverage of your premises. The 4-channel DVR allows for easy viewing and recording of footage, while the 500GB HDD provides ample storage space. The included 70m cable and connector make installation hassle-free. The CP Plus brand is known for its reliable and durable products, and this kit is no exception. With a lens size of 3.6mm and an IR range of 20m, it captures clear and detailed images even in low light conditions. The kit is compatible with an input voltage of 150-240V AC and operates smoothly with its embedded LINUX operating system. With a working temperature range of -10 to 45 deg C, the DVR and SMPS can withstand various weather conditions. The kit is designed to operate within a temperature range of -40 to 60 deg C, ensuring its functionality in extreme weather conditions. The CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit is a reliable and efficient solution for all your surveillance needs.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image SensorDome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video StreamingDome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage Capacity500 GB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W Bullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsDome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹11,859

Contact OEM for bulk pricing & discounts
