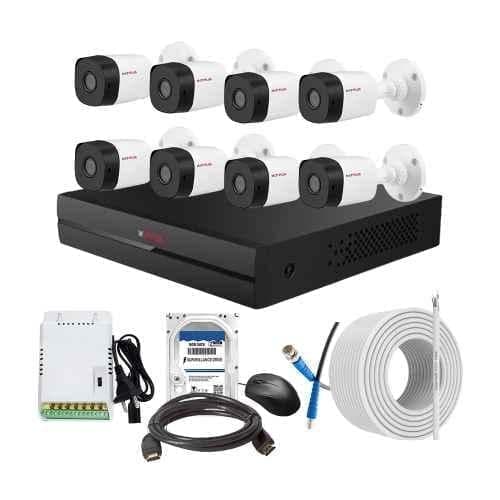

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors

Introducing the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, a comprehensive surveillance solution for your home or business. This kit includes everything you need to set up a reliable and efficient CCTV system. The package includes an 8-channel DVR, 8 bullet cameras with a lens size of 3.6 mm, an 8-channel SMPS, a 70m copper cable, a 500GB HDD, and connectors.<br><br>The CP Plus CCTV Combo Kit is designed to provide clear and detailed footage both indoors and outdoors. With a lens size of 3.6 mm, the bullet cameras can capture a wide field of view, ensuring that no corner goes unnoticed. The 70m copper cable provides flexibility in camera placement, allowing you to easily monitor every angle of your property.<br><br>Equipped with an embedded LINUX operating system, the DVR offers reliable and efficient recording capabilities. The 500GB HDD provides ample storage space for hours of footage, ensuring that you never miss a moment. The DVR and SMPS are designed to withstand extreme temperatures, with an operating temperature range of -10 to 45 degrees Celsius.<br><br>With an IR range of 20m, this CCTV combo kit allows for clear night vision, providing round-the-clock surveillance. The input voltage of 150-240V AC ensures compatibility with a wide range of power sources.<br><br>The CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit is the ideal solution for those looking to enhance their security. With its high-quality components and user-friendly design, this kit offers peace of mind and protection. Experience the power of CP Plus and ensure the safety of your premises.

Technical Specifications

ModelBullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage Capacity500 GB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.85 Mount Type: M12
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureDVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0 Lux IR On
Operating Temperature-40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹16,189

Contact OEM for bulk pricing & discounts
