CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

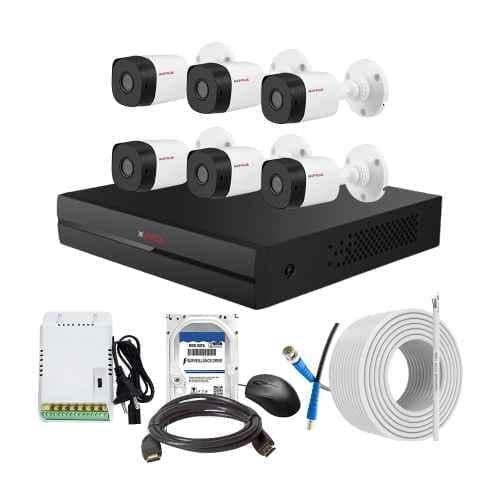

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors

Introducing the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, designed to ensure optimum surveillance both indoors and outdoors. This comprehensive kit includes an 8-channel DVR, 6 bullet cameras, 8-channel SMPS, 70m copper cable, 500GB HDD, and connectors. With a lens size of 3.6mm, the cameras provide a wide field of view, capturing crystal-clear images. The 70m cable length allows for flexible installation options. Operating on an input voltage range of 150-240V AC, this CCTV combo kit is suitable for various power supply conditions. Embedded LINUX serves as the efficient operating system, providing a seamless user experience. The DVR and SMPS can withstand extreme temperatures, ranging from -10 to 45 degrees Celsius, ensuring reliable performance year-round. With an impressive IR range of 20m, this security system excels in low-light conditions. Operating temperature ranges from -40 to 60 degrees Celsius, guaranteeing durability in any climate. The CP Plus brand is synonymous with quality and reliability, making it the ideal choice for your surveillance needs. Upgrade your security with the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit.

Technical Specifications

ModelBullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage Capacity500 GB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.85 Mount Type: M12
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureDVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0 Lux IR On
Operating Temperature-40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹14,139

Contact OEM for bulk pricing & discounts
