CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

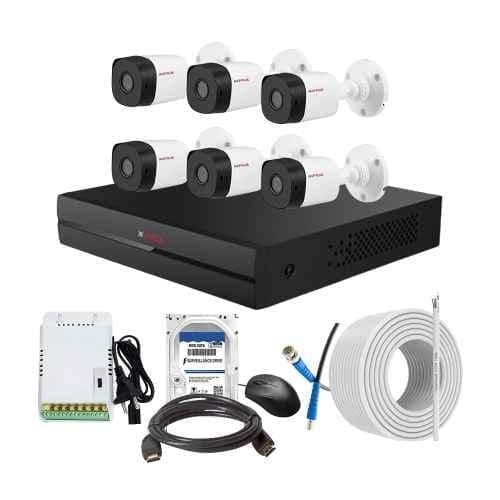

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors

The CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit with 8Ch DVR is the perfect solution for all your security needs. This combo kit includes 6 high-quality bullet cameras, an 8Ch SMPS, a 70m copper cable for seamless connectivity, a 2TB HDD for storing all your footage, and connectors for easy installation. <br><br>Under the category of CCTV Combo Kits, CP Plus stands out as a trusted and reliable brand. The lens size of 3.6mm ensures a wide coverage area, allowing you to monitor large spaces with ease. The 70m cable length provides flexibility in camera placement, eliminating the need for additional extensions. <br><br>With an input voltage range of 150-240V AC, this kit is suitable for various power sources. The operating system embedded in the DVR is LINUX, offering stability and efficiency in performance. The working temperature of the DVR and SMPS ranges from -10 to 45 degrees Celsius, ensuring reliable operation in different environments. <br><br>The infrared range of 20m allows for clear and detailed night vision, providing round-the-clock security. The operating temperature of -40 to 60 degrees Celsius ensures durability in extreme weather conditions. <br><br>In summary, the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit with 8Ch DVR is a comprehensive security solution that combines top-notch hardware with the trusted brand name of CP Plus. With its advanced features and durability, it offers peace of mind and efficient surveillance in any setting.

Technical Specifications

ModelBullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage Capacity2 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.85 Mount Type: M12
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureDVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0 Lux IR On
Operating Temperature-40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹20,209

Contact OEM for bulk pricing & discounts
