CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet Camera, 4Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet Camera, 4Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

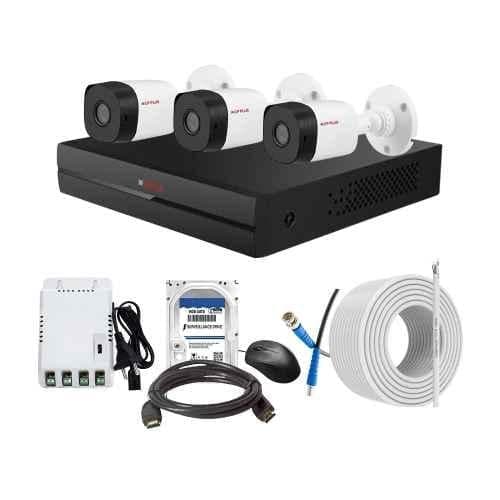

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet Camera, 4Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors

Introducing the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, a reliable and efficient surveillance solution for both indoor and outdoor spaces. This kit includes a 4Ch DVR (Digital Video Recorder) that allows you to record and monitor your premises effortlessly. The DVR operates on an embedded LINUX operating system, ensuring smooth performance and stability. The combo kit also includes 3 bullet cameras with a lens size of 3.6 mm, providing a wide coverage angle to capture every detail. With a 70m copper cable included, you can easily set up your cameras in the desired locations without any hassle. The kit also comes with a 4Ch SMPS to power your entire system, ensuring uninterrupted surveillance. With a generous 1TB HDD (Hard Disk Drive), you can store a significant amount of footage for future reference. The CP Plus CCTV Combo Kit is designed to withstand extreme weather conditions, with the DVR and SMPS operating temperature ranging from -10 to 45 degrees Celsius and the cameras' operating temperature ranging from -40 to 60 degrees Celsius. With an impressive IR range of 20m, you can ensure clear visibility even in low-light conditions. Enjoy peace of mind knowing that your property is protected with the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, perfect for both residential and commercial use. Available in the CCTV Combo Kits category, brought to you by CP Plus, the trusted brand in surveillance technology.

Technical Specifications

ModelBullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage Capacity1 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.85 Mount Type: M12
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Storage TemperatureDVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0 Lux IR On
Operating Temperature-40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹13,709

Contact OEM for bulk pricing & discounts
