CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 4 Bullet Camera, 4Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 4 Bullet Camera, 4Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

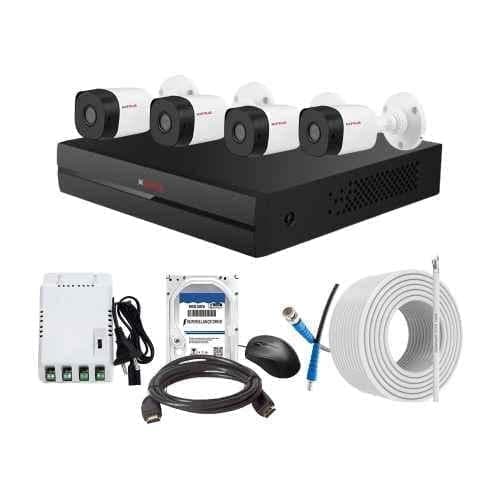

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 4 Bullet Camera, 4Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors

Introducing the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, the ultimate solution for all your security needs. This kit includes a 4Ch DVR, 4 Bullet Camera with a lens size of 3.6 mm, a 4Ch SMPS, and 70m of high-quality copper cable for seamless installation. With a built-in 500GB HDD, you can store hours of footage without worrying about running out of space. The Connectors provided ensure easy connectivity and hassle-free setup. The CP Plus brand is synonymous with reliability and durability, making this CCTV Combo Kit a smart choice for both indoor and outdoor surveillance. The 20m IR range allows for clear night vision, ensuring round-the-clock security. With an input voltage range of 150-240 V AC and an operating system embedded LINUX, this kit is compatible with all your existing devices. The working temperature of the DVR and SMPS ranges from -10 to 45 degrees Celsius, while the operating temperature spans -40 to 60 degrees Celsius, making it suitable for any climate condition. Upgrade your security system with the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit today!

Technical Specifications

ModelBullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage Capacity500 GB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.85 Mount Type: M12
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Storage TemperatureDVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0 Lux IR On
Operating Temperature-40 to 60 deg C
