CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 2TB HDD & Connector
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 2TB HDD & Connector

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

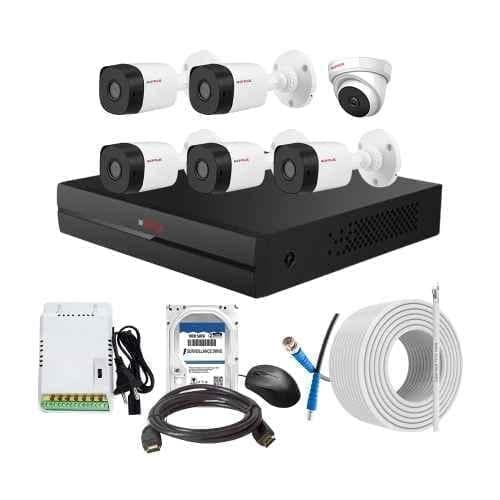

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 2TB HDD & Connector

Introducing the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, the comprehensive solution for all your surveillance needs. This kit includes an 8Ch DVR, 5 Bullet and 1 Dome Camera, an 8Ch SMPS, 70m Cable, 2TB HDD \u0026 Connector, allowing you to set up a robust security system in no time.<br><br>Designed for both indoor and outdoor use, the CCTV Combo Kit ensures high-quality monitoring with its 2.4MP resolution and 3.6mm lens size. The included 70m cable offers flexibility in camera placement, while the 2TB HDD provides ample storage space for your footage.<br><br>With an input voltage of 150-240V AC and an operating system of Embedded LINUX, this kit guarantees reliable performance. The DVR and SMPS have a working temperature range of -10 to 45 degrees Celsius, ensuring optimal functionality in various environments.<br><br>Equipped with an IR range of 20m and an operating temperature range of -40 to 60 degrees Celsius, the CP Plus CCTV Combo Kit provides clear imaging even during nighttime and extreme weather conditions. Trust the brand name CP Plus to deliver top-notch security solutions.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image SensorDome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingDome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage Capacity2 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W Bullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsDome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C
