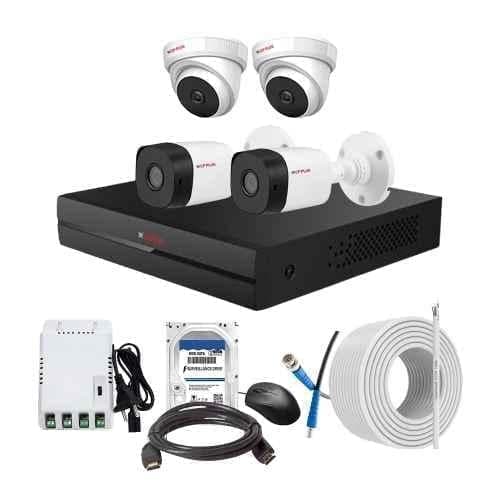

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome 2 Bullet Camera, 4Ch SMPS, 70m Cable, 1TB HDD & Connector
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome 2 Bullet Camera, 4Ch SMPS, 70m Cable, 1TB HDD & Connector

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome 2 Bullet Camera, 4Ch SMPS, 70m Cable, 1TB HDD & Connector

Introducing the CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit, the perfect surveillance solution for both indoor and outdoor environments. This comprehensive kit includes a 4Ch DVR, 2 Dome 2 Bullet cameras, 4Ch SMPS, 70m Cable, 1TB HDD, and connectors. With a lens size of 3.6mm, it offers exceptional clarity and wide coverage. The 70m cable ensures seamless connectivity throughout your premises. The embedded LINUX operating system guarantees smooth performance and reliability. Suitable for any voltage between 150-240 V AC, this kit is versatile and can be used in different setups. The DVR and SMPS can operate in a temperature range of -10 to 45 deg C. With an impressive IR range of 20m, it provides enhanced visibility even in low light conditions. Designed to withstand extreme temperatures from -40 to 60 deg C, this kit is built to last. The CP Plus brand ensures top-quality and peace of mind.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image SensorDome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video StreamingDome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage Capacity1 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W Bullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsDome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹14,589

Contact OEM for bulk pricing & discounts
