CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet 2 Dome Camera, 4Ch SMPS, 70m Cable, 1TB HDD & Connector
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet 2 Dome Camera, 4Ch SMPS, 70m Cable, 1TB HDD & Connector

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet 2 Dome Camera, 4Ch SMPS, 70m Cable, 1TB HDD & Connector

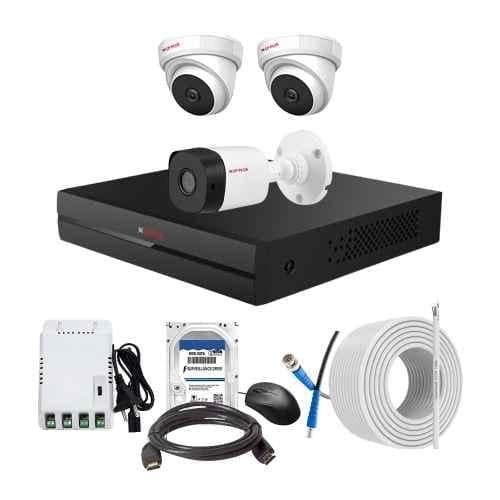

The CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit is the perfect solution for your surveillance needs. This kit includes a 4-channel DVR, 1 bullet camera, 2 dome cameras, a 4-channel SMPS, a 70m cable, a 1TB HDD, and a connector. With a lens size of 3.6 mm, this kit provides clear and detailed images, both indoors and outdoors. The 70m cable ensures easy installation, while the 1TB HDD allows you to store hours of footage. With an input voltage of 150-240 V AC and an operating system of Embedded LINUX, this CCTV combo kit offers reliable performance. The kit can withstand extreme temperatures, as the DVR and SMPS can operate from -10 to 45 degrees Celsius, and the cameras can operate from -40 to 60 degrees Celsius. With an IR range of 20m, the cameras provide excellent night vision. Ensure the security of your home or business with the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image SensorDome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video StreamingDome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage Capacity1 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W Bullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsDome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹13,709

Contact OEM for bulk pricing & discounts
