CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 3 Dome 4 Bullet Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 3 Dome 4 Bullet Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

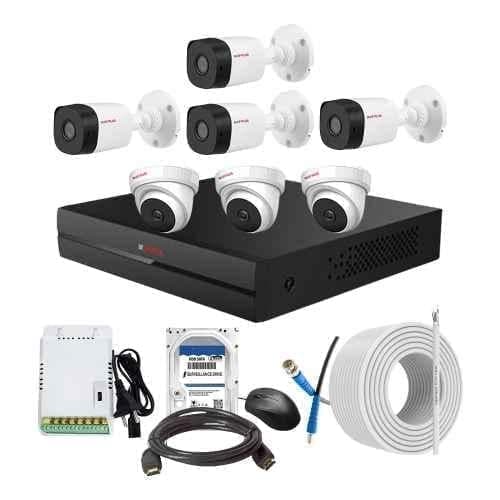

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 3 Dome 4 Bullet Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

Introducing the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, a comprehensive surveillance solution for both indoor and outdoor settings. This kit includes an 8-channel DVR, 3 dome cameras, 4 bullet cameras, 8Ch SMPS, a 70m cable, 500GB HDD, and connector. With its 3.6mm lens size, you can capture crystal clear images and videos. The cable length of 70m ensures that you can easily install and set up the cameras according to your needs. Featuring an input voltage range of 150-240 V AC, this kit is compatible with various power sources. The embedded LINUX operating system ensures smooth and reliable performance. With a working temperature range of -10 to 45 deg C for DVR \u0026 SMPS, this combo kit can withstand varying weather conditions. The IR range of 20m allows for clear visibility even in low light environments. Operating at a temperature range of -40 to 60 deg C, this kit is built to withstand extreme temperatures. Enhance your security with the CP Plus CCTV Combo Kit today.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image SensorDome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingDome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage Capacity500 GB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W Bullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsDome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C
