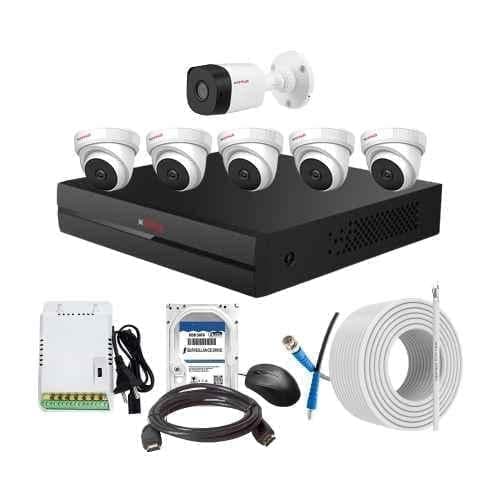

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 5 Dome Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 5 Dome Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 5 Dome Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector

The CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 5 Dome Camera, 8Ch SMPS, 70m Cable, 1TB HDD \u0026 Connector is the ultimate solution for all your surveillance needs. This comprehensive kit includes everything you need to set up a reliable and efficient CCTV system in and around your premises.<br><br>With a lens size of 3.6 mm, this kit ensures that you capture clear and detailed footage. The 70m cable length allows for flexible installation options, ensuring that you can place your cameras wherever they are needed most. The input voltage of 150-240 V AC ensures compatibility with various power sources.<br><br>The operating system embedded in the DVR is LINUX, which provides a stable and secure platform for video recording and playback. The working temperature range of the DVR and SMPS is -10 to 45 deg C, ensuring that your system can withstand different weather conditions.<br><br>The IR range of 20m ensures that you can clearly monitor your surroundings even in low-light environments. The operating temperature range of -40 to 60 deg C further enhances the durability of this kit.<br><br>With a brand name like CP Plus, you can trust that you are investing in a high-quality and reliable product. This CCTV Combo Kit is perfect for both indoor and outdoor surveillance applications, allowing you to monitor your property with ease.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image SensorDome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingDome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage Capacity1 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W Bullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsDome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C
