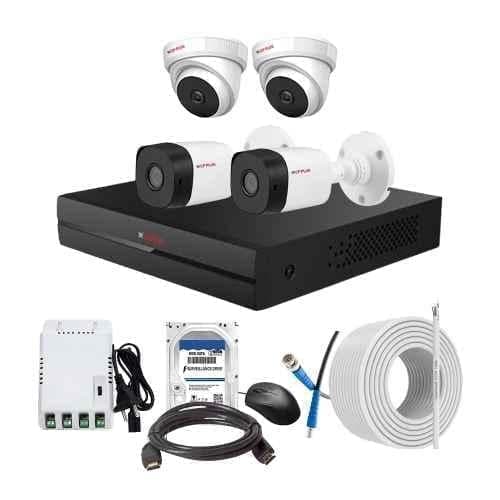

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome 2 Bullet Camera, 4Ch SMPS, 70m Cable, 2TB HDD & Connector
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome 2 Bullet Camera, 4Ch SMPS, 70m Cable, 2TB HDD & Connector

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome 2 Bullet Camera, 4Ch SMPS, 70m Cable, 2TB HDD & Connector

The CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome 2 Bullet Camera, 4Ch SMPS, 70m Cable, 2TB HDD \u0026 Connector is the perfect solution for your surveillance needs. This CCTV combo kit includes everything you need to set up a reliable and efficient security system.<br><br>The kit includes a 4-channel DVR, which allows you to monitor and record footage from up to four cameras simultaneously. With the embedded LINUX operating system, you can expect seamless performance and easy operation. The kit also comes with a 2TB HDD, providing you with ample storage space for your recordings.<br><br>Featuring 2 dome and 2 bullet cameras, this kit allows you to monitor both indoor and outdoor areas. The cameras have a lens size of 3.6mm, providing a wide viewing angle for comprehensive coverage. With an impressive IR range of 20m, you can expect clear and detailed footage even in low-light conditions.<br><br>The kit also includes a 4Ch SMPS and a 70m cable, ensuring a hassle-free installation process. The cable length of 70m allows for flexible camera placement and easy connectivity. With an input voltage of 150-240V AC, you can use this CCTV combo kit in a variety of settings.<br><br>Designed by the renowned brand CP Plus, this CCTV combo kit offers unmatched quality and reliability. With a working temperature range of -10 to 45 deg C for the DVR and SMPS, and an operating temperature range of -40 to 60 deg C for the cameras, you can trust this kit to withstand various weather conditions.<br><br>Overall, the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome 2 Bullet Camera, 4Ch SMPS, 70m Cable, 2TB HDD \u0026 Connector is a comprehensive and dependable solution for all your surveillance needs. Choose this kit for peace of mind and enhanced security.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image SensorDome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video StreamingDome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage Capacity2 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W Bullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsDome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C
