CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Bullet 1 Dome Camera, 4Ch SMPS, 70m Cable, 2TB HDD & Connector
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Bullet 1 Dome Camera, 4Ch SMPS, 70m Cable, 2TB HDD & Connector

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

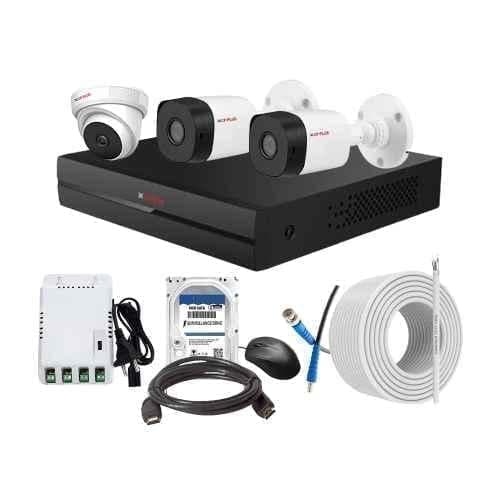

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Bullet 1 Dome Camera, 4Ch SMPS, 70m Cable, 2TB HDD & Connector

Introducing the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, the ideal solution for all your surveillance needs. This comprehensive kit includes a powerful 4Ch DVR, 2 bullet cameras, 1 dome camera, a 4Ch SMPS, a 70m cable, a 2TB HDD, and all necessary connectors.<br><br>Designed for both indoor and outdoor use, this kit ensures 24/7 monitoring of your surroundings. The 2.4MP cameras offer crystal-clear images with their 3.6 mm lens size. With a cable length of 70m, you have the flexibility to install your cameras wherever needed.<br><br>The input voltage range of 150-240 V AC guarantees stable and reliable performance. The embedded LINUX operating system ensures smooth operation and easy configuration. The DVR and SMPS can withstand extreme temperatures, from -10 to 45 degrees Celsius, making them suitable for all environments.<br><br>Featuring an impressive IR range of 20m, this kit guarantees clear night vision, providing enhanced security even in low-light conditions. The operating temperature range of -40 to 60 degrees Celsius ensures durability and functionality in any climate.<br><br>Choose the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit for a comprehensive surveillance solution that delivers exceptional performance and peace of mind.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image SensorDome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video StreamingDome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage Capacity2 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W Bullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsDome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C
