CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 6 Dome Camera, 8Ch SMPS, 70m Copper Cable & Connectors
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 6 Dome Camera, 8Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 6 Dome Camera, 8Ch SMPS, 70m Copper Cable & Connectors

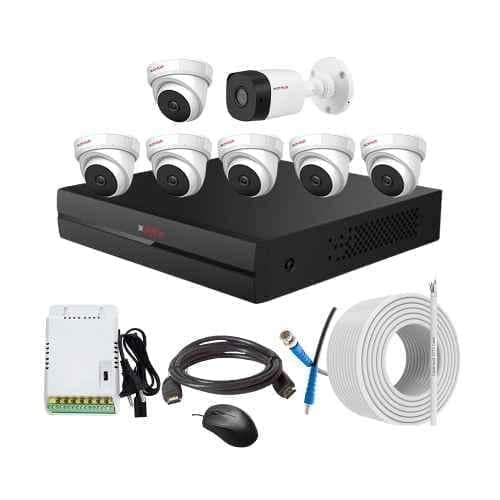

Introducing the CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit, a comprehensive and reliable surveillance solution for both indoor and outdoor spaces. This kit includes an 8-channel DVR, 1 bullet camera, 6 dome cameras, an 8-channel SMPS, 70m of copper cable, and connectors. Under the trusted brand name of CP Plus, you can be assured of high-quality performance and reliable monitoring. With a lens size of 3.6mm, this CCTV kit captures detailed footage with precision. The included cable measures 70m, providing ample length for easy installation. Operating on an input voltage range of 150-240 V AC, the kit functions smoothly with an embedded LINUX operating system. Designed to withstand varying temperatures, the DVR and SMPS operate between -10 to 45 degrees Celsius, while the overall operating temperature range is -40 to 60 degrees Celsius. With an impressive IR range of 20m, this kit ensures clear and visible monitoring even in low-light conditions. Perfectly suited for homes, offices, and commercial spaces, the CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit is the ideal choice in the CCTV Combo Kits category.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image SensorDome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingDome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage CapacityNO HDD
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W Bullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsDome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹13,109

Contact OEM for bulk pricing & discounts
