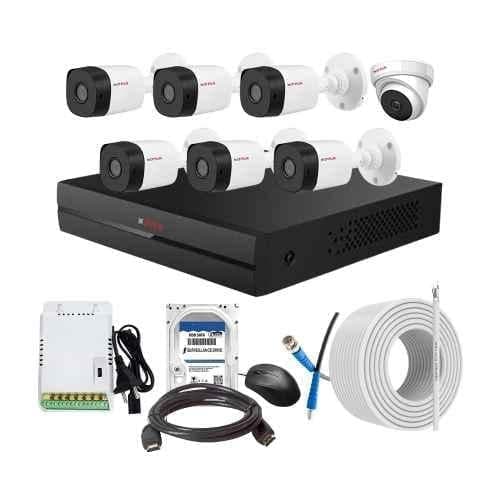

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector

The CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector is a top-of-the-line surveillance solution for both indoor and outdoor use. This kit includes everything you need to set up a reliable and efficient CCTV system.<br> <br>With its 2.4MP high-definition resolution, you can capture clear and detailed footage. The 6 bullet and 1 dome camera provide 360-degree coverage, ensuring that no blind spots are left unmonitored. The 3.6mm lens size offers a wide viewing angle, making it ideal for large areas.<br> <br>Equipped with an embedded LINUX operating system, this kit ensures smooth and reliable performance. The 8Ch DVR allows for seamless video recording and playback. The 1TB HDD provides ample storage space for storing recordings.<br> <br>Designed to withstand the toughest conditions, the DVR and SMPS have an operating temperature range of -10 to 45 degrees Celsius. The cable, with a length of 70m, allows for flexible installation options. With an IR range of 20m, this kit ensures visibility even in low light conditions.<br> <br>Whether you want to monitor your home, office, or any other property, the CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector is the perfect choice. Trust the reliable brand name of CP Plus for your security needs.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image SensorDome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingDome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage Capacity1 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W Bullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsDome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C
