CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet 1 Dome Camera, 4Ch SMPS, 70m Cable, 2TB HDD & Connector
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet 1 Dome Camera, 4Ch SMPS, 70m Cable, 2TB HDD & Connector

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

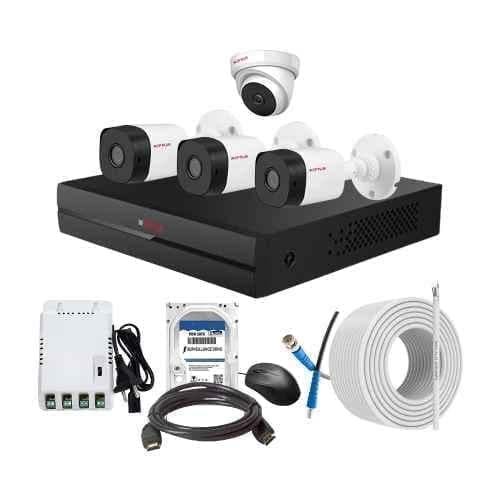

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet 1 Dome Camera, 4Ch SMPS, 70m Cable, 2TB HDD & Connector

Introducing the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, the ultimate surveillance solution for your home or business. This kit includes everything you need to set up a comprehensive security system. <br><br>Featuring a 4Ch DVR with an embedded LINUX operating system, this CCTV combo kit provides seamless monitoring and recording of 3 bullet and 1 dome camera. The cameras are equipped with a 3.6 mm lens, ensuring a clear and wide field of view. With an impressive IR range of 20 m, you can trust that every corner of your property is under surveillance, day and night.<br><br>The kit also includes a 4Ch SMPS for efficient power supply, a 70m cable for hassle-free installation, and a generous 2TB HDD for ample storage space. The CP Plus CCTV Combo Kit has a working temperature range of -10 to 45 deg C, making it suitable for both indoor and outdoor use. Additionally, the durable construction ensures reliable performance even in extreme temperatures ranging from -40 to 60 deg C.<br><br>With its impressive features and renowned brand name, CP Plus, this CCTV combo kit is a reliable and efficient choice for your security needs. Protect your property with confidence and stay one step ahead of potential threats with this comprehensive surveillance solution.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image SensorDome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video StreamingDome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage Capacity2 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W Bullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsDome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹16,779

Contact OEM for bulk pricing & discounts
