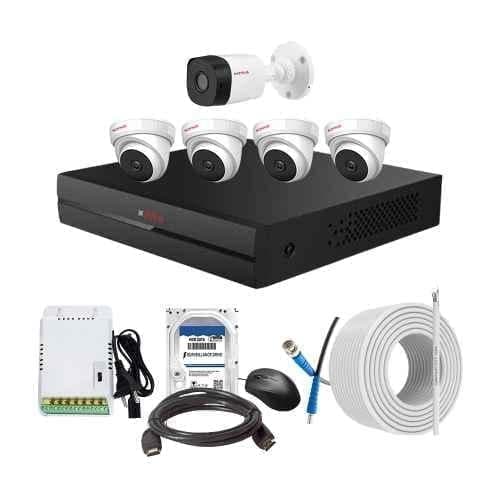

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 4 Dome Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 4 Dome Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 4 Dome Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector

Introducing the CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit, the ultimate surveillance solution. This kit includes an 8Ch DVR, 1 Bullet 4 Dome Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector, providing comprehensive coverage for both indoor and outdoor areas. With a lens size of 3.6 mm, you can capture crystal clear images and videos. The 70m cable ensures easy installation and flexibility. The input voltage of 150-240 V AC guarantees reliable power supply. The embedded LINUX operating system ensures smooth performance and efficient data management. This kit is designed to withstand varying temperatures, with the DVR & SMPS operating between -10 to 45 deg C and an operating temperature range of -40 to 60 deg C for optimal functionality. With an impressive IR range of 20m, you can rely on this CCTV combo kit for excellent night vision capabilities. Protect your property with the CP Plus CCTV Combo Kit.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image SensorDome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingDome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage Capacity1 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W Bullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsDome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹16,889

Contact OEM for bulk pricing & discounts
