CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet Camera, 4Ch SMPS, 70m Copper Cable & Connectors
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet Camera, 4Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

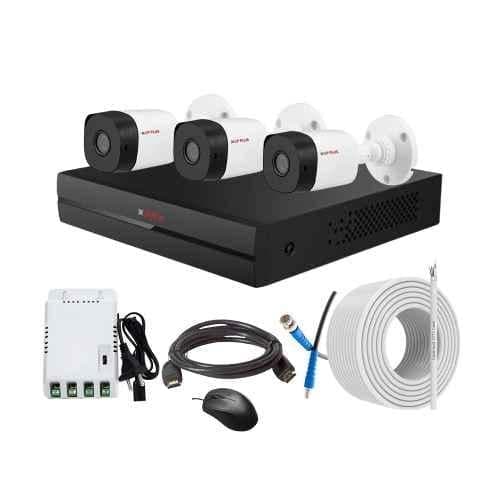

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet Camera, 4Ch SMPS, 70m Copper Cable & Connectors

The CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit is a versatile security solution that includes everything you need for comprehensive surveillance. With its 4 channel DVR, 3 bullet cameras, 4Ch SMPS, 70m copper cable, and connectors, this kit is perfect for both indoor and outdoor use. The cameras come with a lens size of 3.6 mm, providing clear and detailed images. The kit also includes a 70m copper cable, allowing for flexible placement of the cameras. With an input voltage of 150-240 V AC, the system is compatible with various power sources. The operating system is embedded with LINUX, ensuring reliable and efficient performance. The DVR and SMPS can withstand temperatures ranging from -10 to 45 degrees Celsius, while the cameras have an IR range of 20m. With an operating temperature of -40 to 60 degrees Celsius, this CCTV combo kit is suitable for all weather conditions. Experience the peace of mind that comes with reliable and high-quality surveillance, with the CP Plus brand.

Technical Specifications

ModelBullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage CapacityNO HDD
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.85 Mount Type: M12
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Storage TemperatureDVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0 Lux IR On
Operating Temperature-40 to 60 deg C
