CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet 1 Dome Camera, 4Ch SMPS, 70m Cable, 500GB HDD & Connector
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet 1 Dome Camera, 4Ch SMPS, 70m Cable, 500GB HDD & Connector

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

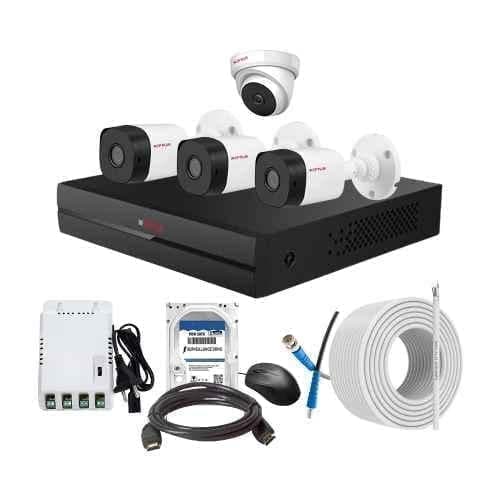

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet 1 Dome Camera, 4Ch SMPS, 70m Cable, 500GB HDD & Connector

Introducing the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, a reliable and comprehensive surveillance solution designed to meet your security needs. This kit includes all the essential components required for effective monitoring, making it perfect for both indoor and outdoor applications.<br><br>With its 3 bullet and 1 dome camera, this kit ensures excellent coverage of your property. The 3.6mm lens size provides a wide field of view, capturing every detail with clarity. The 70m cable length allows for flexible camera placement, ensuring that no area goes unmonitored.<br><br>Equipped with a 4Ch DVR and a 500GB HDD, this kit offers ample storage space to record and store your footage. The embedded LINUX operating system ensures seamless performance and reliable functionality.<br><br>Designed to withstand harsh weather conditions, this kit can operate in temperatures ranging from -40 to 60 deg C, making it suitable for use in various environments. The included DVR and SMPS can withstand temperatures as low as -10 deg C and as high as 45 deg C.<br><br>With an IR range of 20m, this CCTV combo kit delivers clear and detailed images even in low-light conditions. The input voltage range of 150-240 V AC ensures compatibility with different power sources.<br><br>Choose the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit for a comprehensive surveillance solution that guarantees your peace of mind.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image SensorDome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video StreamingDome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage Capacity500 GB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W Bullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsDome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C
