CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Bullet 2 Dome Camera, 8Ch SMPS, 70m Copper Cable & Connectors
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Bullet 2 Dome Camera, 8Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

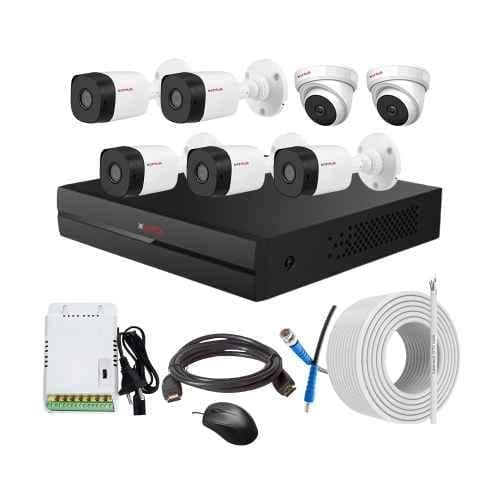

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Bullet 2 Dome Camera, 8Ch SMPS, 70m Copper Cable & Connectors

Introducing the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, a comprehensive surveillance system that offers ultimate security for your home or office. With this advanced kit, you can monitor both indoor and outdoor areas with ease. The kit includes 5 bullet cameras and 2 dome cameras, all equipped with a 3.6mm lens for crystal-clear images. The 8-channel DVR allows you to conveniently view and record footage from all the cameras. The package also includes an 8-channel SMPS for power supply, a 70m copper cable for seamless connectivity, and connectors for easy installation. With an operating system embedded in LINUX, this CCTV combo kit offers reliable performance and stability. The DVR and SMPS are designed to withstand extreme temperatures ranging from -10 to 45 degrees Celsius, ensuring reliable operation even in harsh environments. The cameras provide an impressive IR range of 20 meters, enabling clear vision even in complete darkness. With an operating temperature range of -40 to 60 degrees Celsius, this CCTV combo kit is built to endure various weather conditions. Choose CP Plus for top-notch security solutions, and keep your premises safe and secure at all times.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image SensorDome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingDome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage CapacityNO HDD
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W Bullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsDome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C
