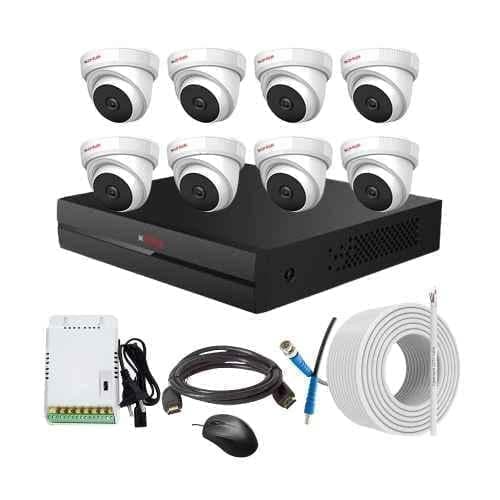

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Dome Camera, 8Ch SMPS, 70m Copper Cable & Connectors
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Dome Camera, 8Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Dome Camera, 8Ch SMPS, 70m Copper Cable & Connectors

The CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit is the ultimate surveillance solution for both indoor and outdoor environments. With this kit, you will receive an 8-channel DVR, 8 dome cameras, an 8-channel SMPS, 70m of copper cable, and connectors. This comprehensive kit covers all your security needs.<br><br>The 2.4MP dome cameras included in this kit provide high-resolution images with a lens size of 3.6mm. They are designed to withstand both indoor and outdoor conditions, ensuring reliable performance in any environment. The cameras have an impressive IR range of 20m, allowing you to capture clear footage even in low-light situations.<br><br>The 8-channel DVR operates on an embedded LINUX operating system, ensuring a stable and reliable performance. It supports up to 8 cameras, providing you with a comprehensive surveillance solution. The DVR and SMPS can withstand operating temperatures ranging from -10 to 45 degrees Celsius, making it suitable for use in various conditions.<br><br>With a cable length of 70m, you can easily install this CCTV combo kit in large areas without the need for additional cables. The connectors included in the kit allow for easy installation and setup. The input voltage range of 150-240 V AC ensures compatibility with various power sources.<br><br>Overall, the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit offers a comprehensive surveillance solution with high-quality cameras, reliable performance, and easy installation. With its advanced features and durability, this kit is an ideal choice for all your security needs.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Streaming2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage CapacityNO HDD
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.85
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureDVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0 Lux IR On
Operating Temperature-40 to 60 deg C
