CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Dome Camera, 8Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Dome Camera, 8Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

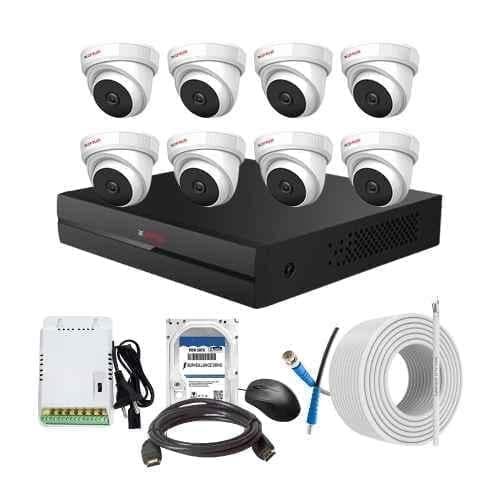

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Dome Camera, 8Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors

Introducing the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, the ultimate surveillance solution for your home or business. This versatile kit comes with everything you need for a comprehensive security system. With an 8-channel DVR, you can easily monitor and record footage from up to 8 dome cameras simultaneously. The 3.6mm lens size ensures clear and detailed images, while the 70m copper cable provides flexibility in camera placement. The 2TB HDD allows for ample storage of recorded footage, and the included connectors make installation a breeze. The CP Plus brand is renowned for its high-quality products, and this CCTV Combo Kit is no exception. With an input voltage of 150-240 V AC and operating temperature ranging from -10 to 45 deg C, the system is designed to withstand any conditions. The embedded LINUX operating system ensures smooth and reliable performance. With an IR range of 20m, you can capture clear footage even in low light conditions. Trust CP Plus for all your security needs.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Streaming2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage Capacity2 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.85
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureDVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0 Lux IR On
Operating Temperature-40 to 60 deg C
