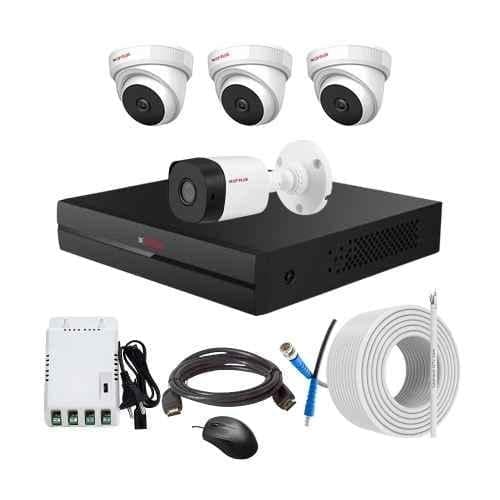

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet 3 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet 3 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet 3 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors

The CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet 3 Dome Camera, 4Ch SMPS, 70m Copper Cable \u0026 Connectors is a comprehensive surveillance solution perfect for both indoor and outdoor use. This reliable and high-quality combo kit includes a 4Ch DVR, which operates on an embedded LINUX operating system for enhanced performance and stability.<br><br>The kit comes with 1 bullet and 3 dome cameras, each equipped with a 3.6mm lens that ensures clear and focused images. With an impressive IR range of 20m, these cameras provide excellent night vision, making them ideal for 24/7 monitoring.<br><br>The 70m copper cable ensures easy installation and optimal connectivity between the cameras and DVR. The kit also includes connectors for hassle-free setup.<br><br>Built with the utmost durability in mind, the DVR and SMPS have an operating temperature range of -10 to 45 deg C. The cameras can withstand harsh weather conditions, thanks to their operating temperature range of -40 to 60 deg C.<br><br>Overall, this CCTV Combo Kit from CP Plus is a reliable and cost-effective solution for your surveillance needs. Whether you need to monitor your home or business, this kit provides high-quality performance and peace of mind.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image SensorDome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video StreamingDome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage CapacityNO HDD
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W Bullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsDome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹8,569

Contact OEM for bulk pricing & discounts
