CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Dome Camera, 4Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Dome Camera, 4Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

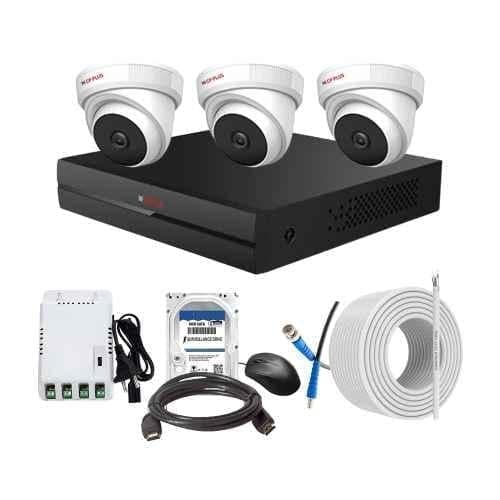

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Dome Camera, 4Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors

Introducing the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, the perfect solution for your surveillance needs. This kit includes a 4Ch DVR, 3 Dome Cameras, 4Ch SMPS, 70m Copper Cable, 2TB HDD, and Connectors, all from the trusted brand, CP Plus. With a lens size of 3.6mm, you can capture clear and detailed footage both indoors and outdoors. The 70m cable length ensures that you can easily set up your cameras wherever you need them. Powered by an input voltage of 150-240 V AC, this kit offers reliable performance. The embedded LINUX operating system ensures smooth operation and maximum security. With a working temperature range of -10 to 45 degrees Celsius for both the DVR and SMPS, you can trust that this kit will withstand various environmental conditions. The IR range of 20m provides excellent night vision capabilities. Operating temperature ranges from -40 to 60 degrees Celsius, making it suitable for extreme climates. Experience top-notch surveillance with the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video Streaming2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage Capacity2 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.85
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Storage TemperatureDVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0 Lux IR On
Operating Temperature-40 to 60 deg C
