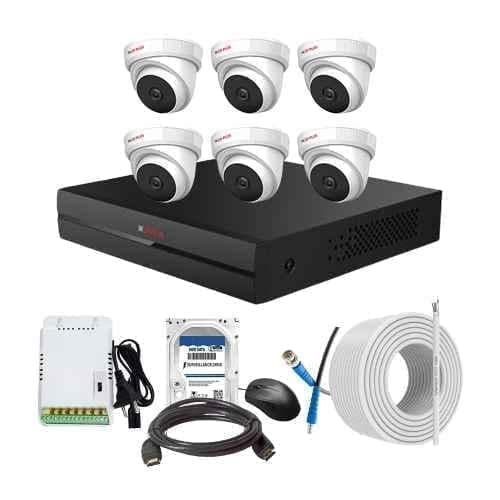

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Dome Camera, 8Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Dome Camera, 8Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Dome Camera, 8Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors

The CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit is the perfect solution for all your security needs. With its 8Ch DVR and 6 Dome Cameras, this kit provides high-quality surveillance footage both indoors and outdoors. The kit also includes an 8Ch SMPS for power supply, a 70m Copper Cable for easy installation, a 500GB HDD for ample storage, and all the necessary connectors. The lens size of 3.6mm ensures clear and detailed images, while the 70m cable length allows flexibility in camera placement. The input voltage range of 150-240V AC makes it compatible with various power sources. The operating system is embedded LINUX, providing a reliable and efficient surveillance platform. With an operating temperature range of -10 to 45 deg C for the DVR and SMPS and -40 to 60 deg C for the cameras, this kit can withstand any weather condition. The IR range of 20m ensures visibility even in low-light conditions. Choose the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit for comprehensive and reliable security.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Streaming2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage Capacity500 GB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.85
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureDVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0 Lux IR On
Operating Temperature-40 to 60 deg C
