CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Bullet 2 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Bullet 2 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

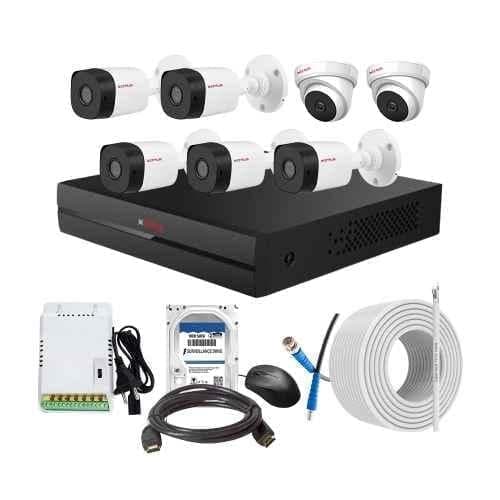

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Bullet 2 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

Specified at video resolution 1920x1080p, 1280x1024p & 1280x720p and a list price of ₹14,869, the CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Bullet 2 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector is a CP Plus surveillance camera for perimeter and entrance monitoring across warehouses, plants and retail floors. Core specifications cover video resolution of 1920x1080p, 1280x1024p & 1280x720p, image sensor of Dome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS, camera of 2.4 MP and frequency range of 50-60 Hz. It is further specified with ir range 20 m, standards IP67, power consumption Dome: 2.3 W Bullet: 2.7 W DVR: <10 W and input voltage 150-240 V AC. Security integrators specify it where coverage, night performance and recording retention are audited. It is listed at ₹14,869 on Industrial Hardwares, supplied through verified OEMs and distributors. Bulk and project pricing for the surveillance camera is quoted on request, along with current availability.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image SensorDome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingDome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage Capacity500 GB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W Bullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsDome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C
