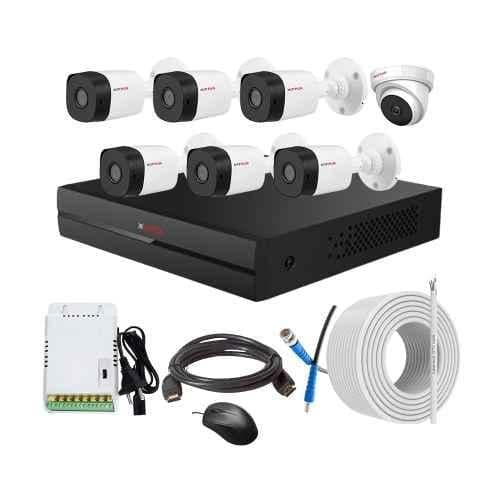

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet 1 Dome Camera, 8Ch SMPS, 70m Copper Cable & Connectors
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet 1 Dome Camera, 8Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet 1 Dome Camera, 8Ch SMPS, 70m Copper Cable & Connectors

The CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit is essential for all your surveillance needs. With a sleek design and durable construction, this kit is perfect for both indoor and outdoor use. The kit includes an 8-channel DVR, 6 bullet cameras, and 1 dome camera, ensuring comprehensive coverage of any area. With a lens size of 3.6mm, you can capture crisp and clear images. The included 70m copper cable and connectors provide a reliable and secure connection. The CP Plus brand is known for its high-quality products, making this combo kit a reliable choice. With an input voltage of 150-240 V AC, this kit can easily be integrated into any existing system. The operating system is embedded LINUX, ensuring smooth and reliable performance. The working temperature of the DVR and SMPS is -10 to 45 degrees Celsius, allowing for reliable operation in various environments. With an IR range of 20m, you can capture clear footage even in low light conditions. The operating temperature of -40 to 60 degrees Celsius ensures that this kit can withstand extreme weather conditions. Overall, the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit is a reliable and comprehensive solution for all your surveillance needs.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image SensorDome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingDome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage CapacityNO HDD
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W Bullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsDome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹13,409

Contact OEM for bulk pricing & discounts
